Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

Installing the FBU in the FBU holder

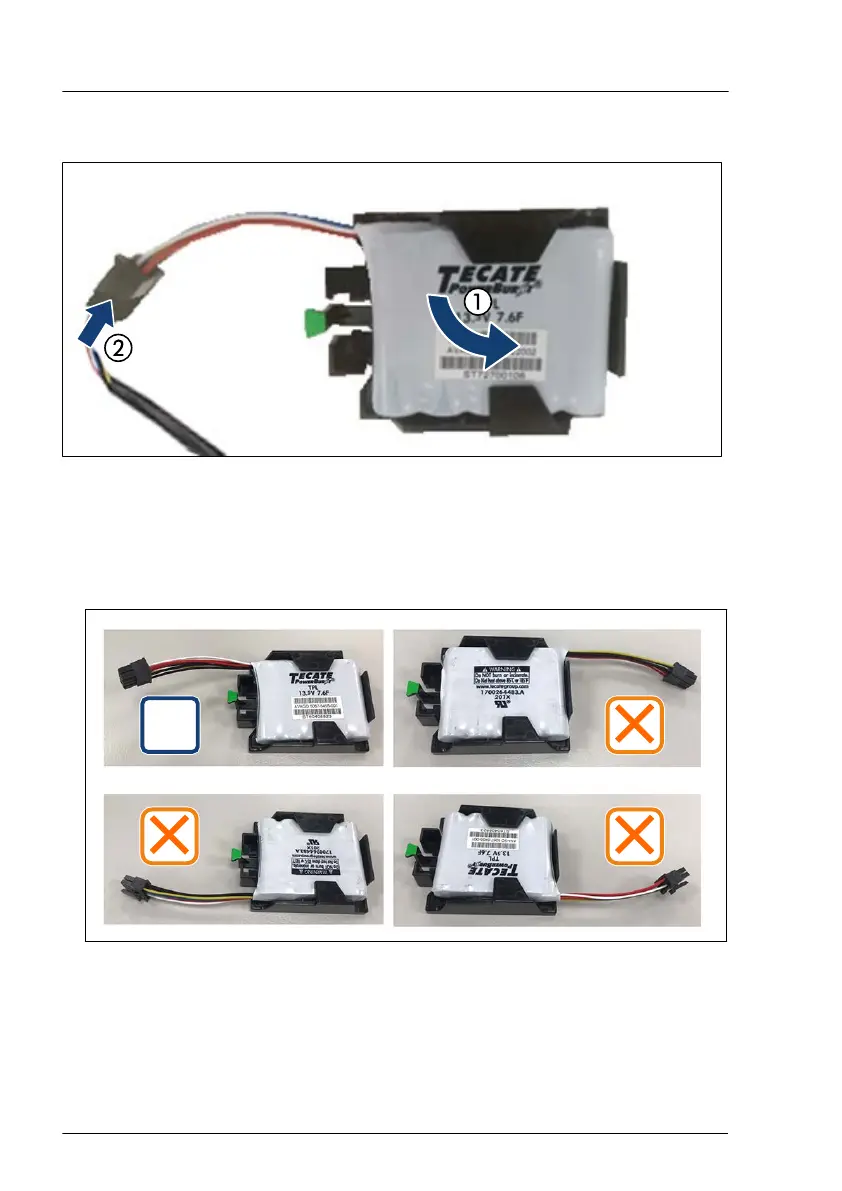

Figure 204: Installing the FBU in the holder
▶
At a slight angle, fit the FBU under both retaining brackets of the FBU holder
as shown.
Notice the right position of the FBU cable:
OK
▶
Push in the FBU until it locks in place (1).
▶
Connect the FBU adapter cable to the FBU (2).
▶
If applicable, connect the FBU adapter cable to the corresponding RAID
controller
.
Expansion cards and backup units
318 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
