Insert the FBU with the holder and slide in direction of the arrow until the
FBU holder engages (see circle).
▶
Install the RAID controller, see "Installing an expansion card" on page
255.
Examples FBU cabling with two FBUs

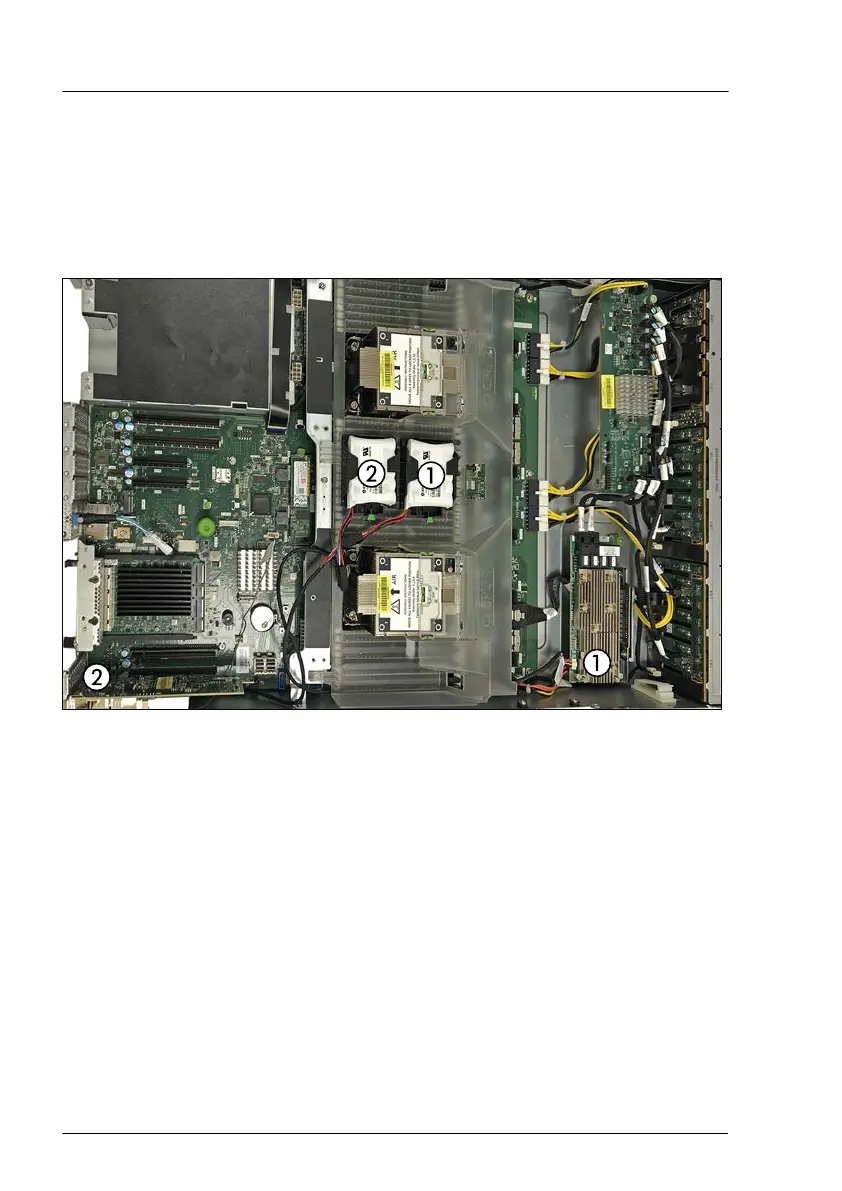

Figure 207: 2x FBUs, 2x SAS EP5xxi RAID controller in internal RAID riser slot and PCIe slot
1
1 Cable to FBU 1 and SAS EP5xxi RAID
controller
2 Cable to FBU 2 and SAS EP5xxi RAID
controller
Expansion cards and backup units
320 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
