Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

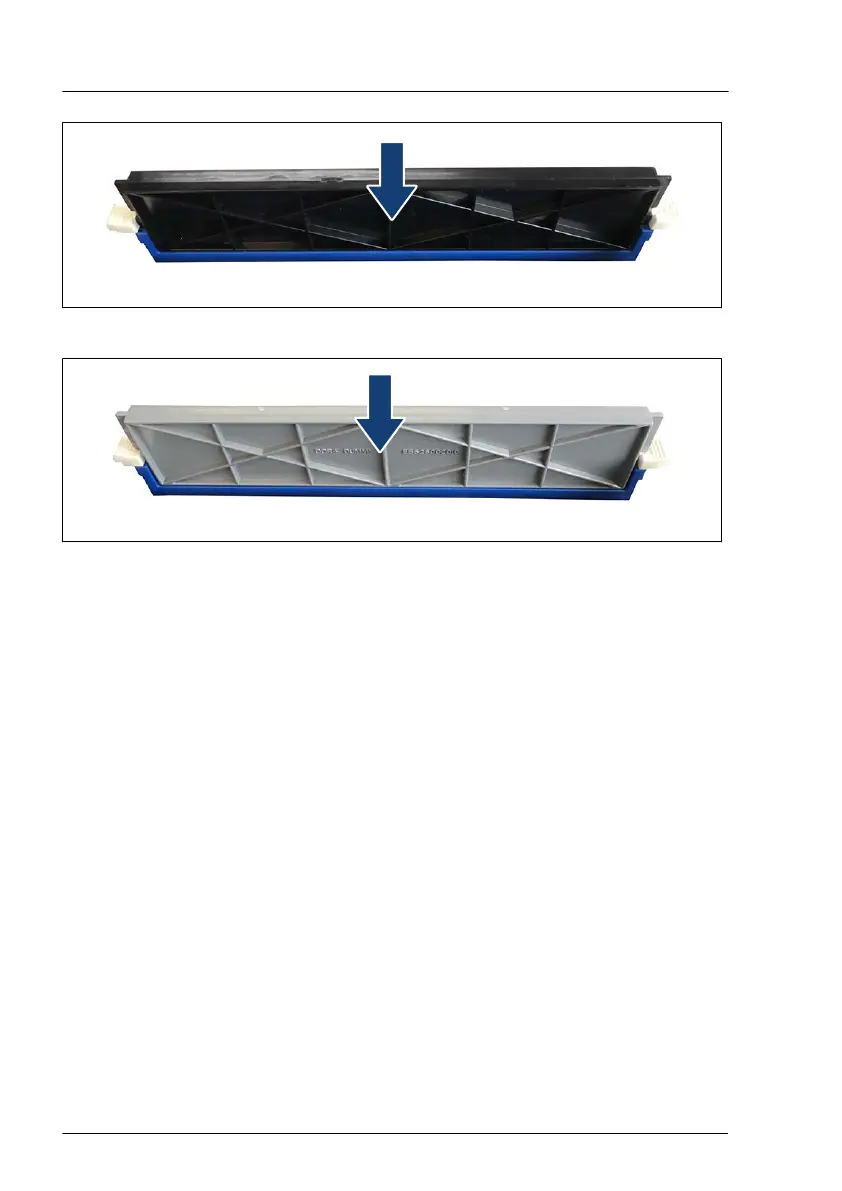

Figure 218: Installing a memory dummy module - variant 1
Figure 219: Installing a memory dummy module - variant 2
▶
Align the notch on the bottom of the module with the crossbar in the slot.
▶
Press down on the dummy module until the securing clips snap into the
cutouts at each end of the module.
Main memory
344 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
