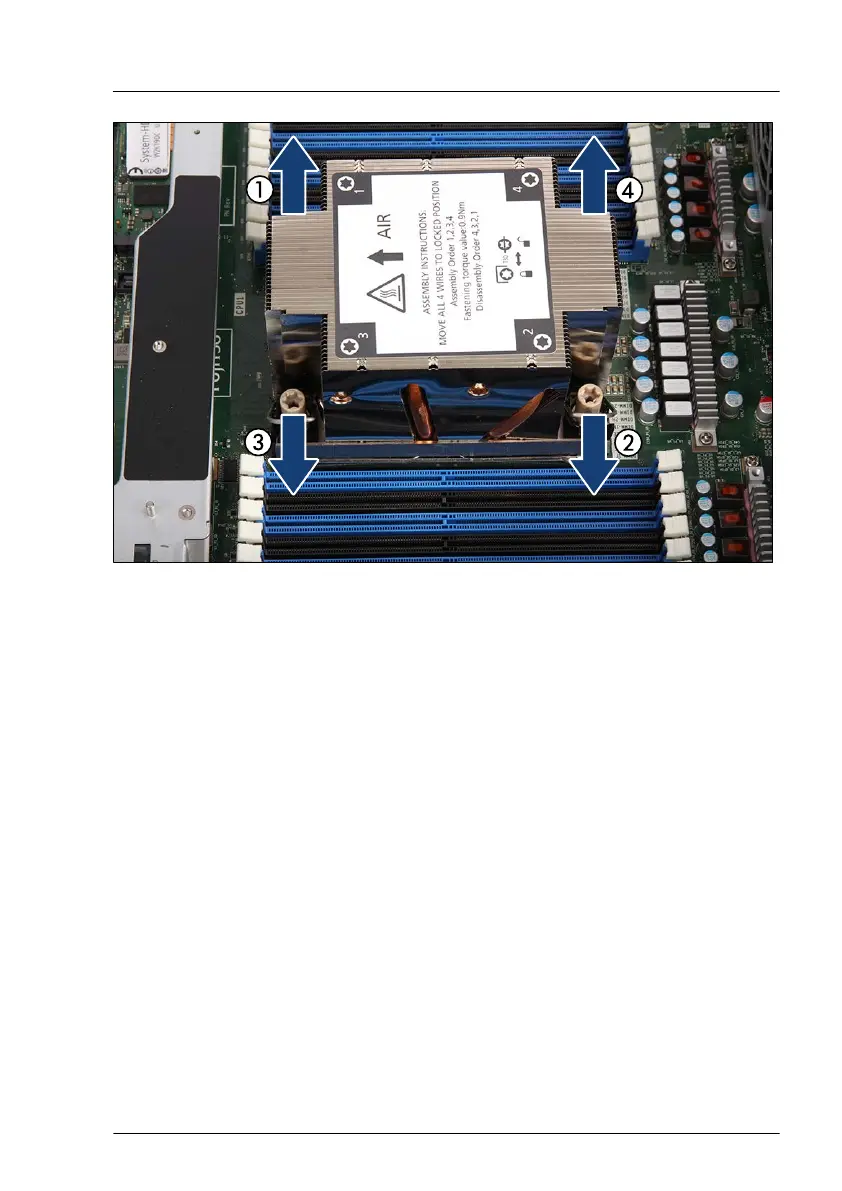

Figure 229: Installing the heat sink (B)
▶
Push the four latches outward (see arrows).
▶
Fasten the four captive screws in the sequence printed on the heat sink (1 to
4), by proceeding as follows:
T
orque: 0.9 Nm - 1.0 Nm
▶
First, fasten the captive screws 1 and 2 completely
.
▶
Fasten the captive screws 3 and 4 completely.
Processor (CPU)
