Installing an LTO drive

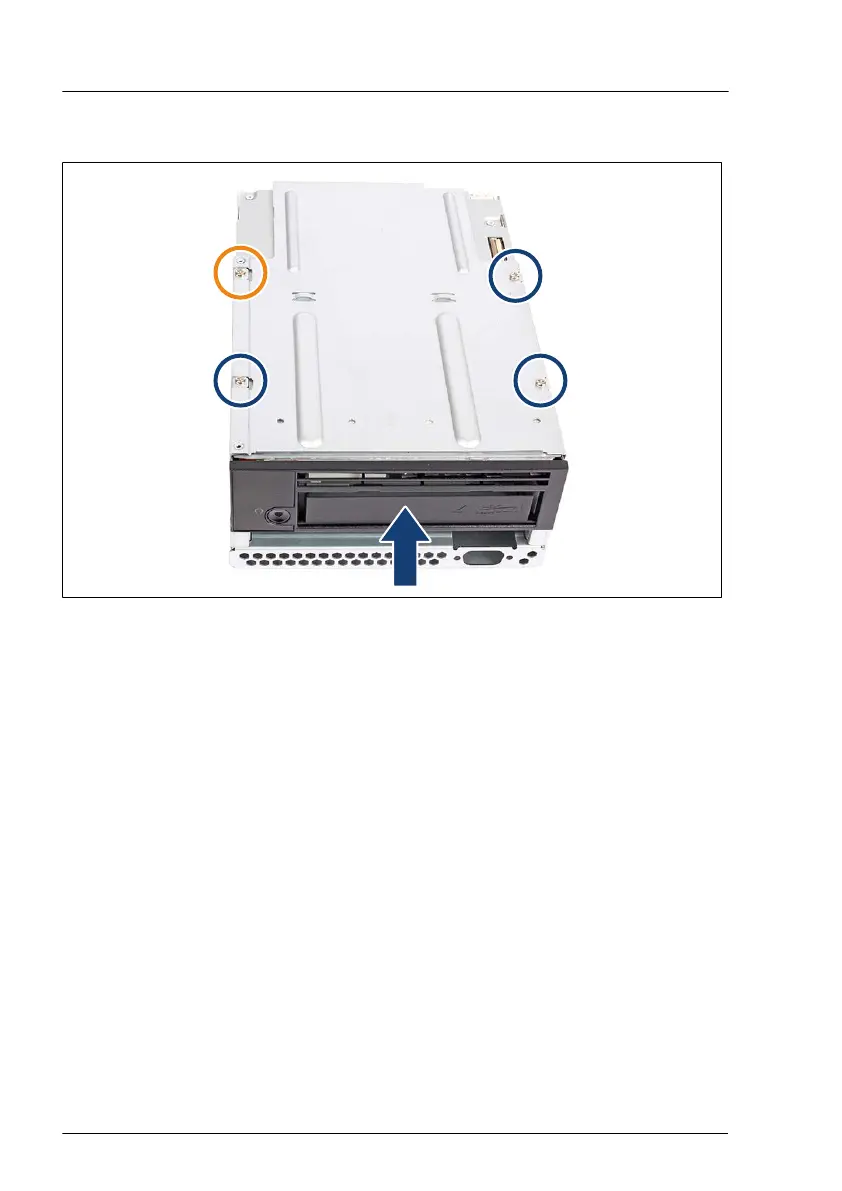

Figure 283: Installing the LTO drive (A)
▶
Insert the LT
O drive into the front panel module (see arrow).
▶
If applicable, fasten the LTO drive with four screws (see blue and orange
circles).
▶
In case of an LTO drive which has only three screw-holes, fasten with three
screws (see blue circles).
Accessible drives
416 Upgrade and Maintenance Manual RX2540 M6
