Removing the LTO drive

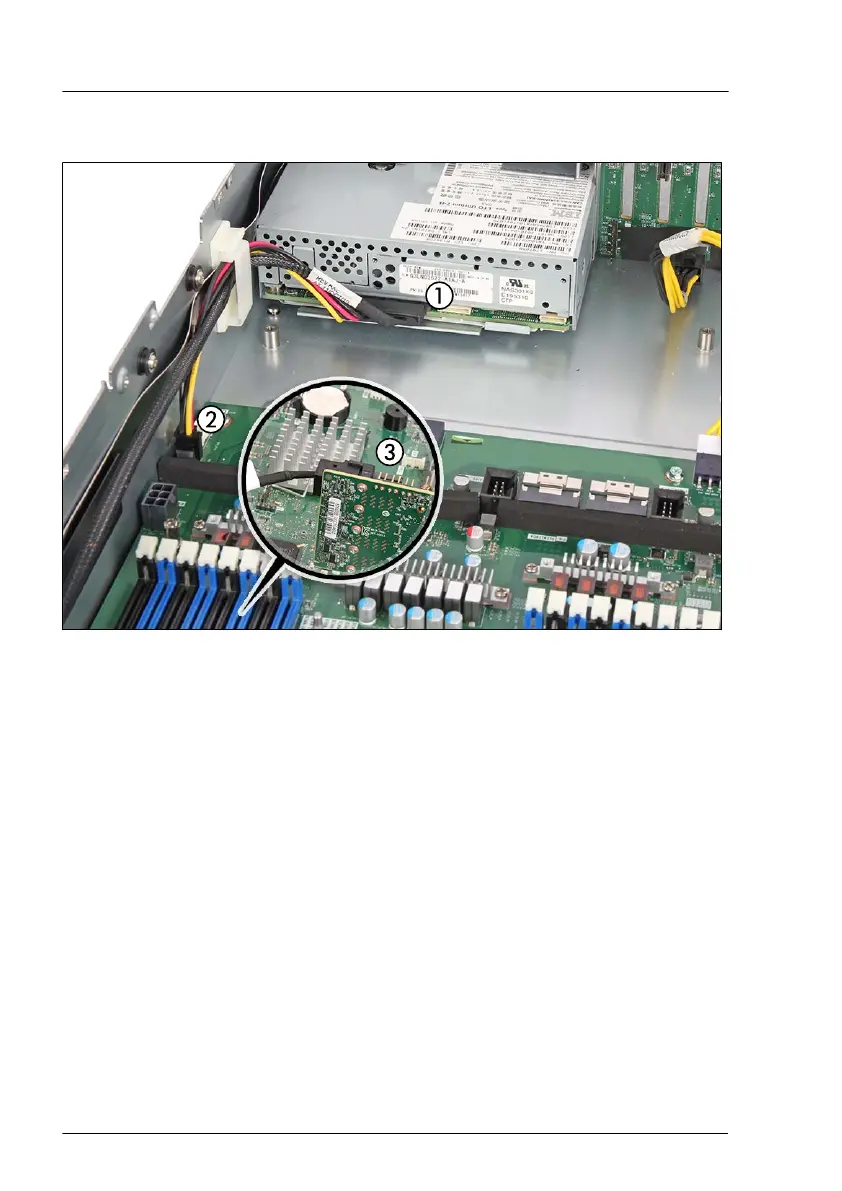

Figure 287: Disconnecting the cable from the LTO drive
▶
Disconnect the LT
O cable from the LTO drive (1).
▶
Disconnect the end of the power cable from connector "PWR6" (2) on the
system board.
▶
Disconnect the end of the SAS cable from connector "C0" (3, close-up) on
the PSAS CP500i RAID card in PCIe slot 5.
