"Removing the fan cage" on page 74.
Removing the RDX drive

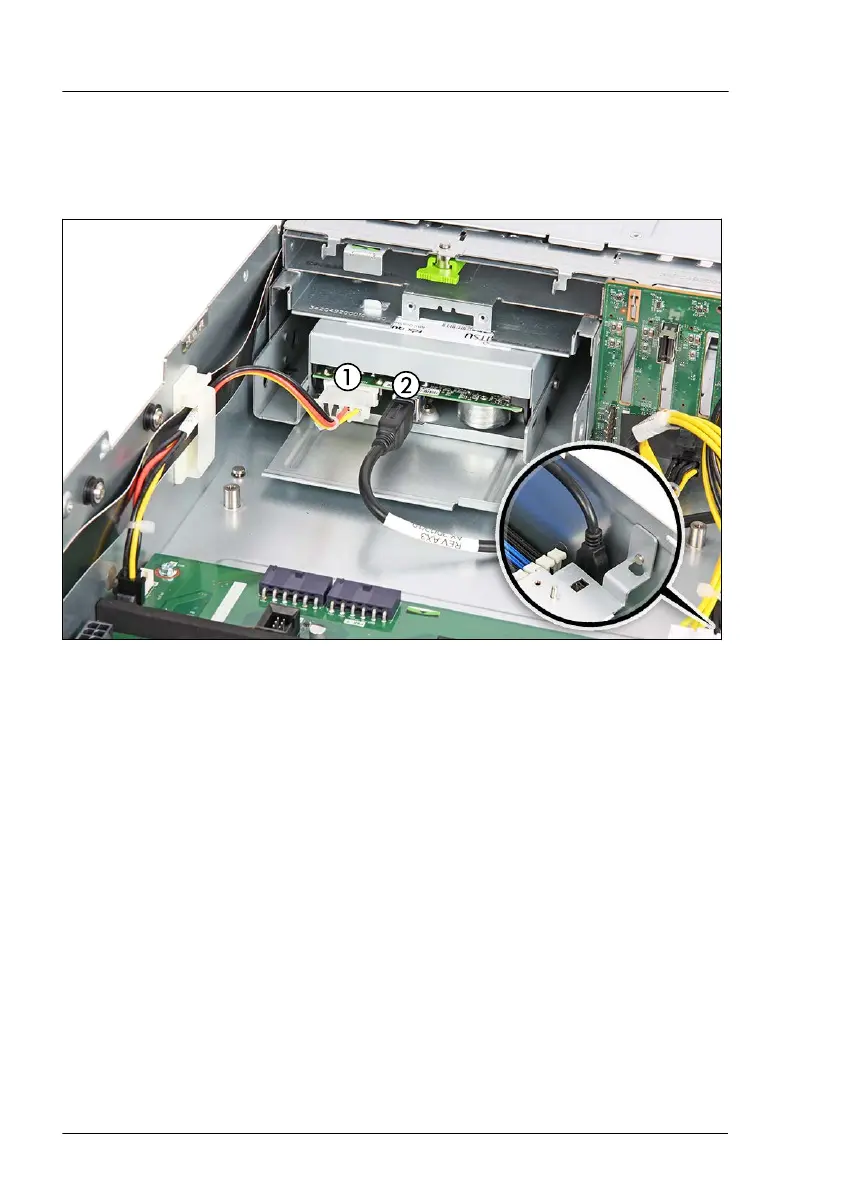

Figure 305: Disconnecting the cables from the RDX drive
▶
Disconnect the power cable from the RDX drive (1).
▶
Disconnect the end of the power cable from connector "PWR6" on the
system board.
▶
Disconnect the USB cable from the RDX drive (2).
▶
Disconnect the end of the USB cable from connector "USB4" (see close-up)
on the system board.
Accessible drives
438 Upgrade and Maintenance Manual RX2540 M6
