Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

▶
"Removing the air duct" on page 78
.
Removing the COP
The COP and the front panel cable are combined in one spare part.

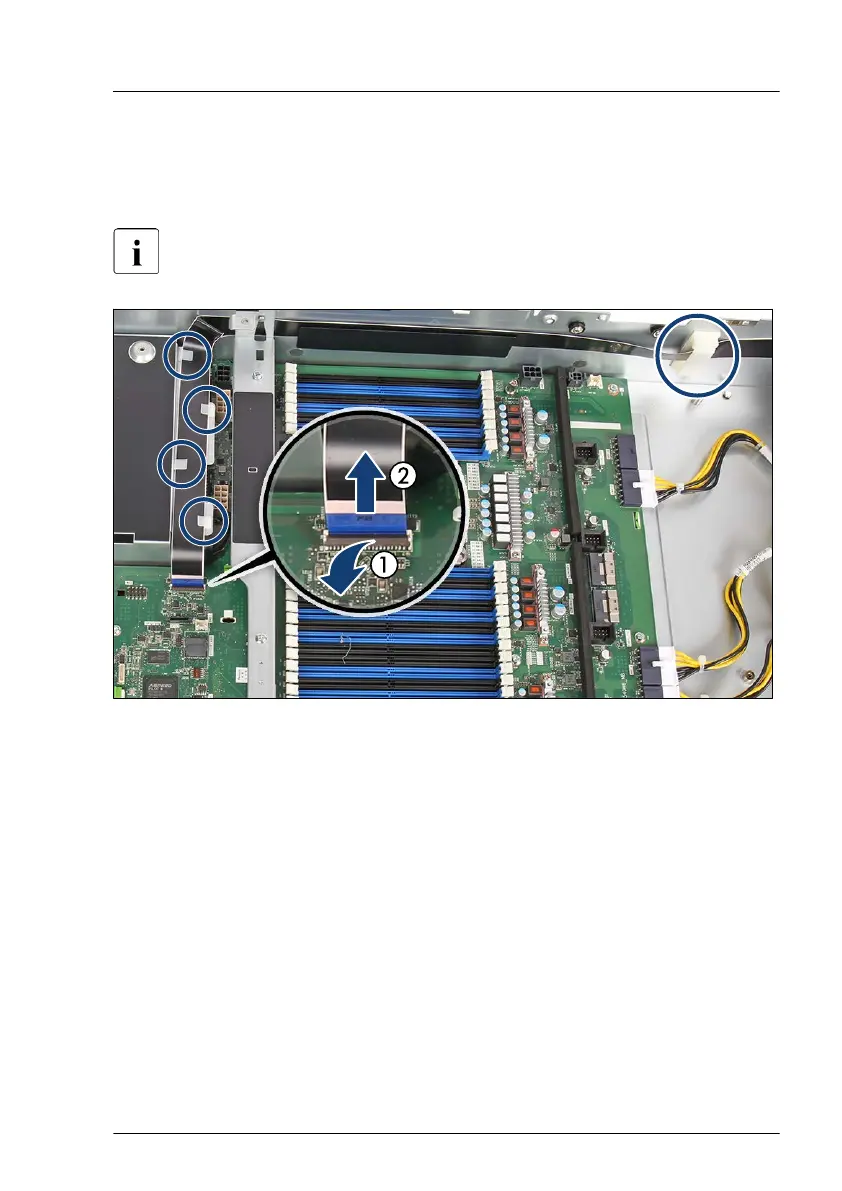

Figure 313: Removing the front panel cable
▶
Pull up the locking bar (1).
▶
Disconnect the front panel cable (2).
▶
Remove the front panel cable from the cable clips (see circles).
Front panel
RX2540 M6 Upgrade and Maintenance Manual 449

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
