Installing the front VGA

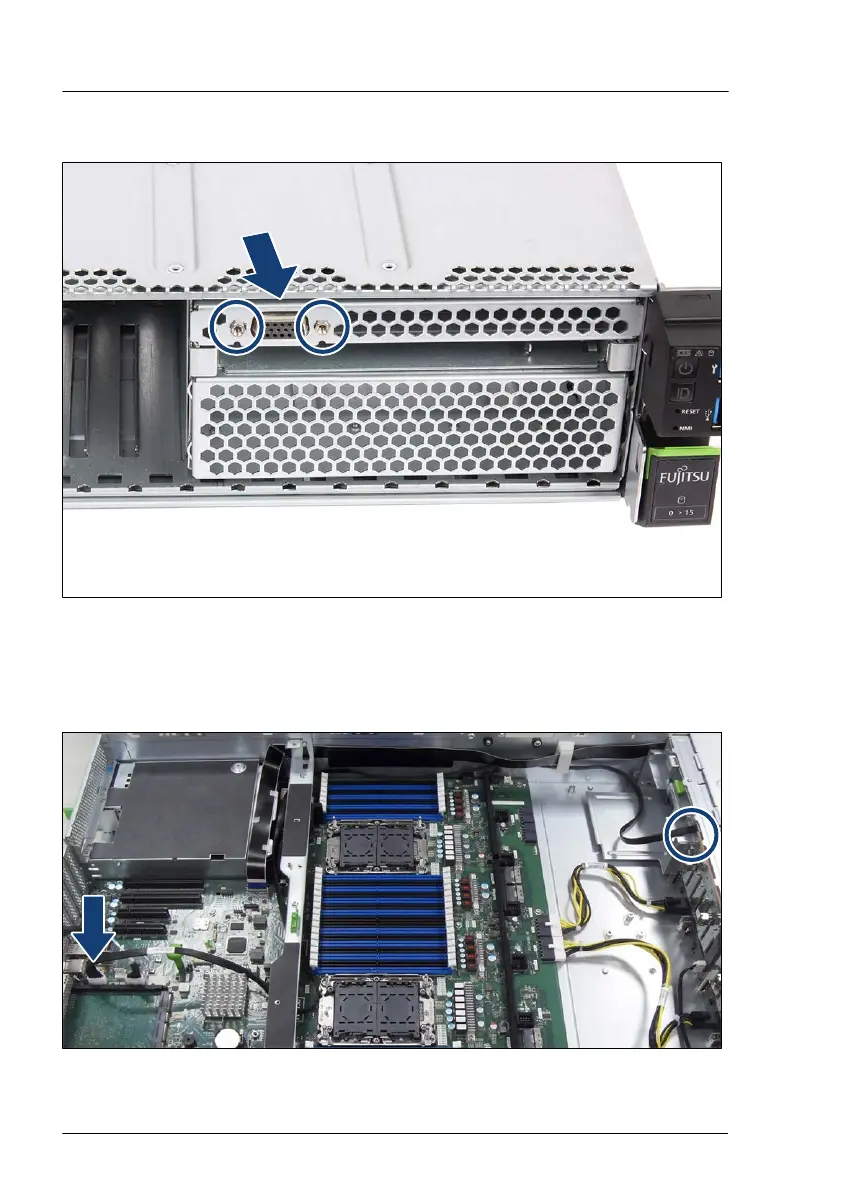

Figure 320: Installing the front VGA
▶
Insert the front VGA cable from the server inside through the opening.
▶
Fasten the front VGA connector with the two screws (see circles).
Figure 321: Installing the front VGA cable
Front panel
