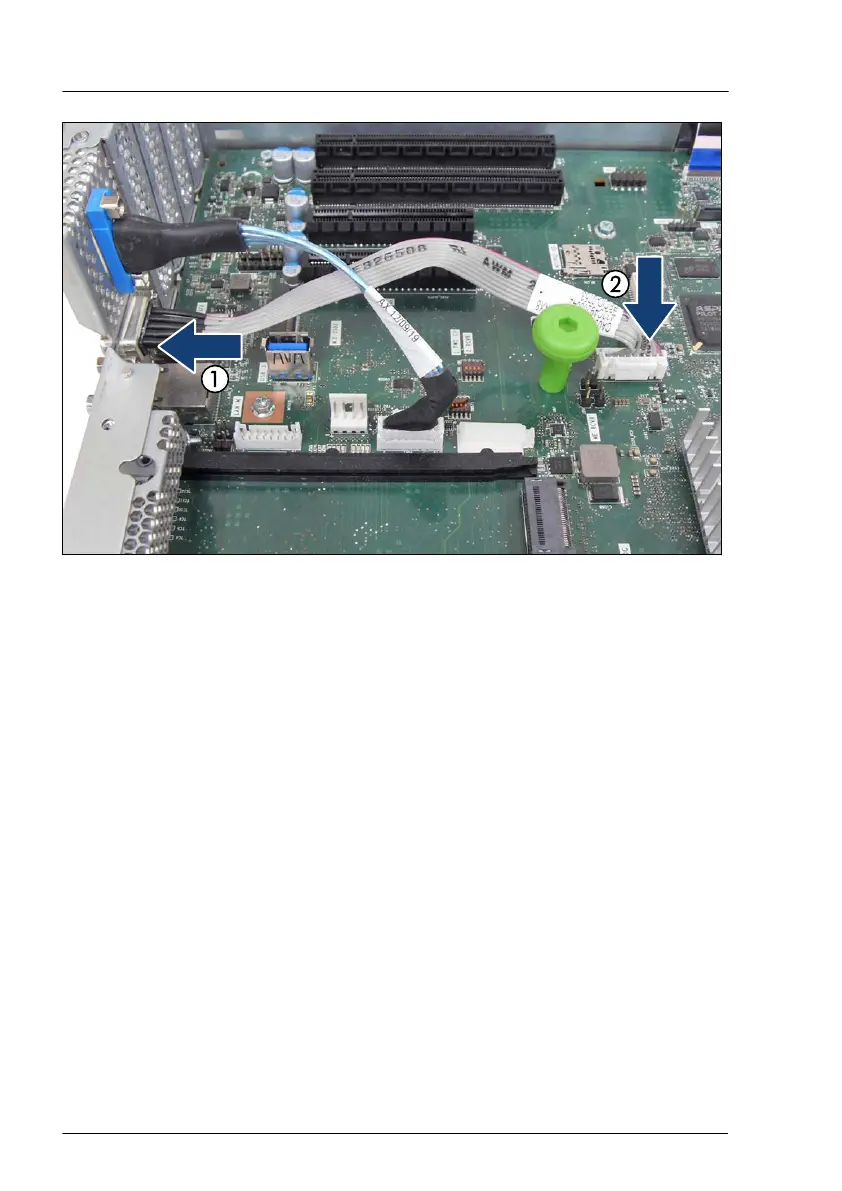

Figure 327: Installing the serial interface (A)
▶
Insert the serial interface into the slot cover (1).
▶
Connect the serial interface cable to the connector "Rear Serial" on the
system board (2).
