Fujitsu PRIMERGY RX2540 M6

Installing the rear VGA

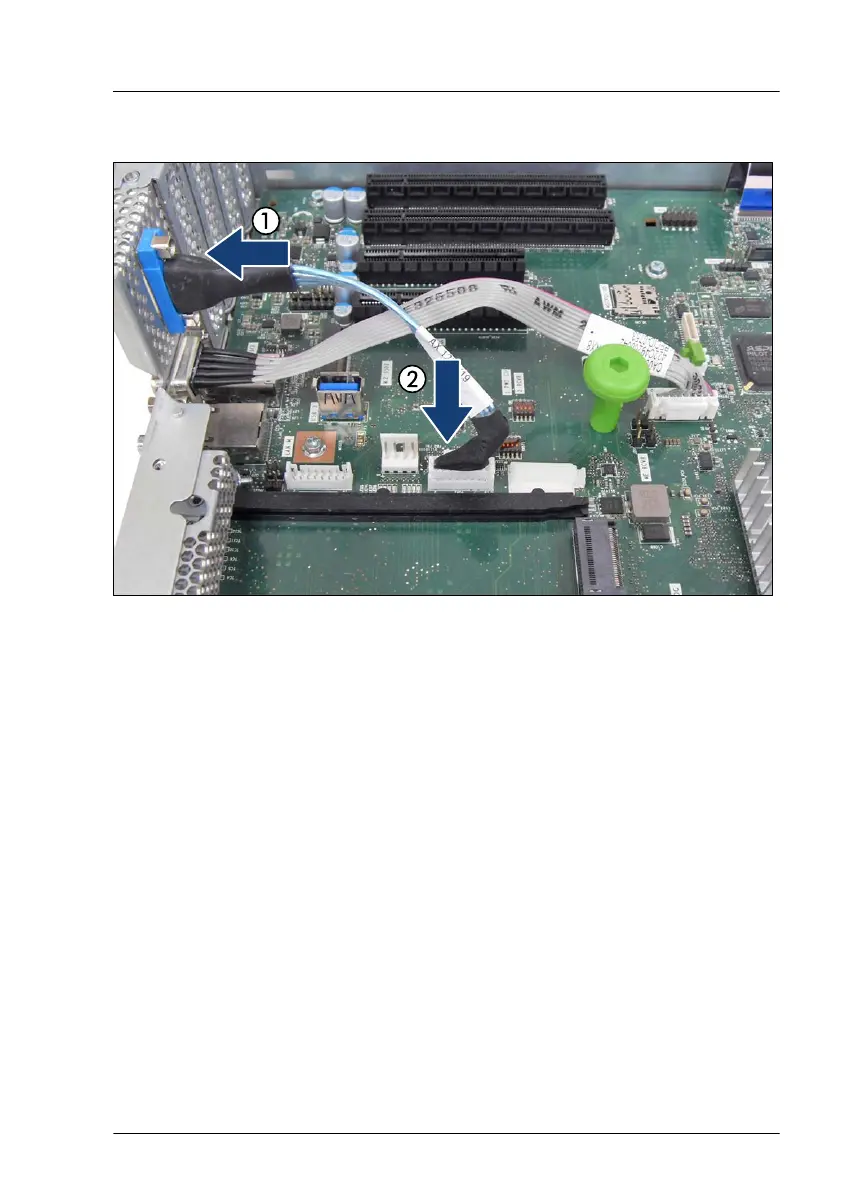

Figure 333: Installing the rear VGA connector (A)
▶
Insert the rear VGA connector into the slot cover (1).
▶
Connect the VGA cable to the connector "Rear VGA" on the system board
(2).
Additional interfaces
RX2540 M6 Upgrade and Maintenance Manual 473
