Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

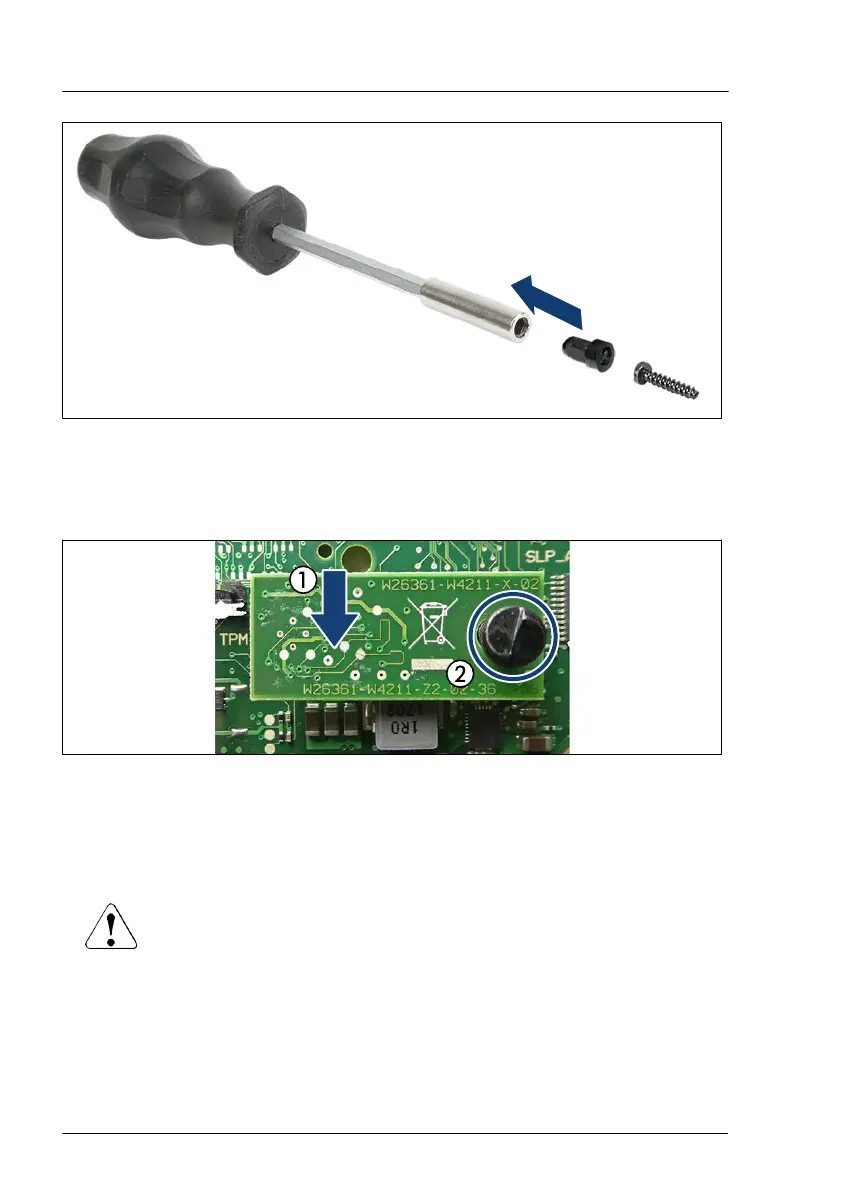

Figure 340: TPM bit insert
▶
Attach the TPM bit insert or TPM module fixing tool (for Japan) to a bit screw
driver.
Figure 341: Installing the TPM
▶
Connect the TPM to the system board (1).
▶
Fasten the TPM with the special screw for the TPM using the TPM bit insert
or TPM module fixing tool (Japan) (2).
CAUTION
▶
Do not fasten the screw too firmly.
▶
Stop it by extent where the head of the screw lightly touches the
TPM. Torque: 0.6 Nm (not used in Japan).
System board and components
482 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
