Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

▶

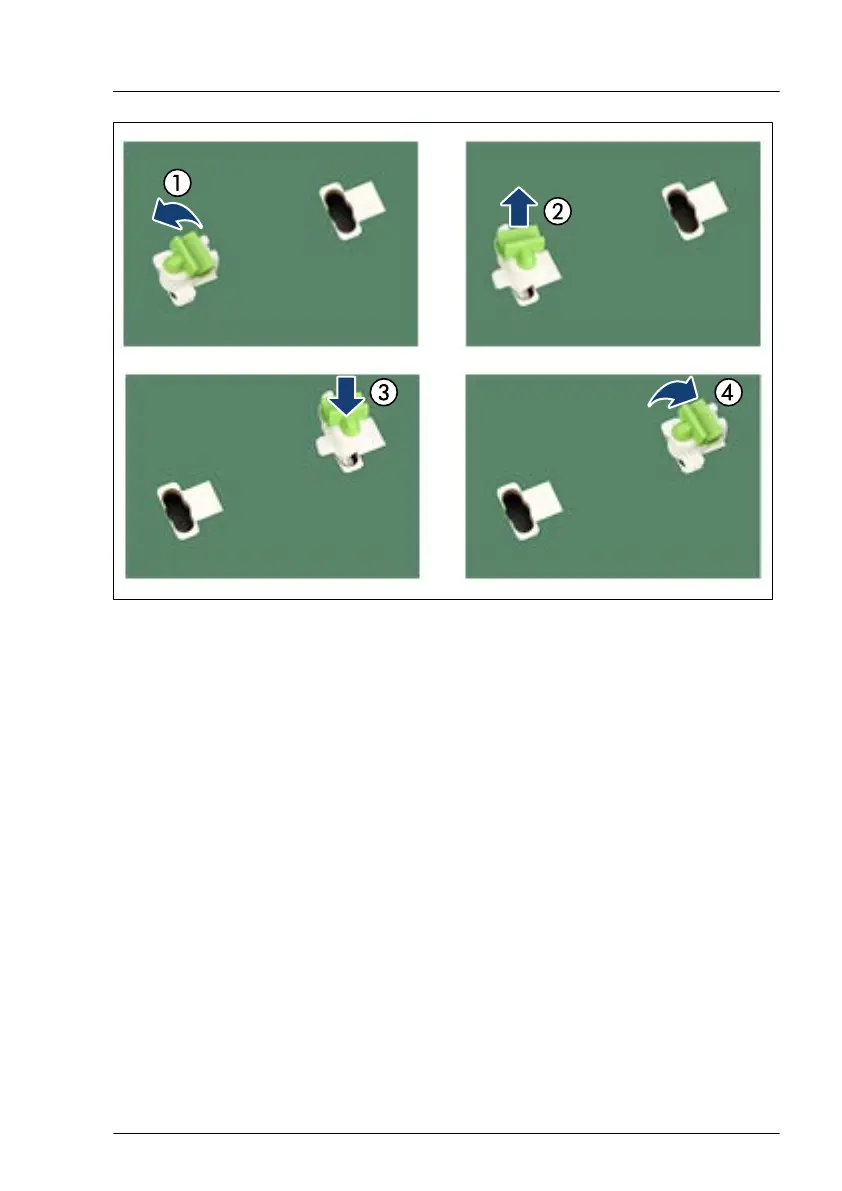

If applicable, move the M.2 SSD latch to a fitting position:
▶
Turn the M.2 SSD latch for 90 degrees (1).
▶
Remove the M.2 SSD latch (2).
▶
Install the M.2 SSD latch in the right position depending on the length of
the M.2 SSD (3).
▶
T
urn the M.2 SSD latch for 90 degrees (4).
System board and components
RX2540 M6 Upgrade and Maintenance Manual 499

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
