Removing the M.2 SSD

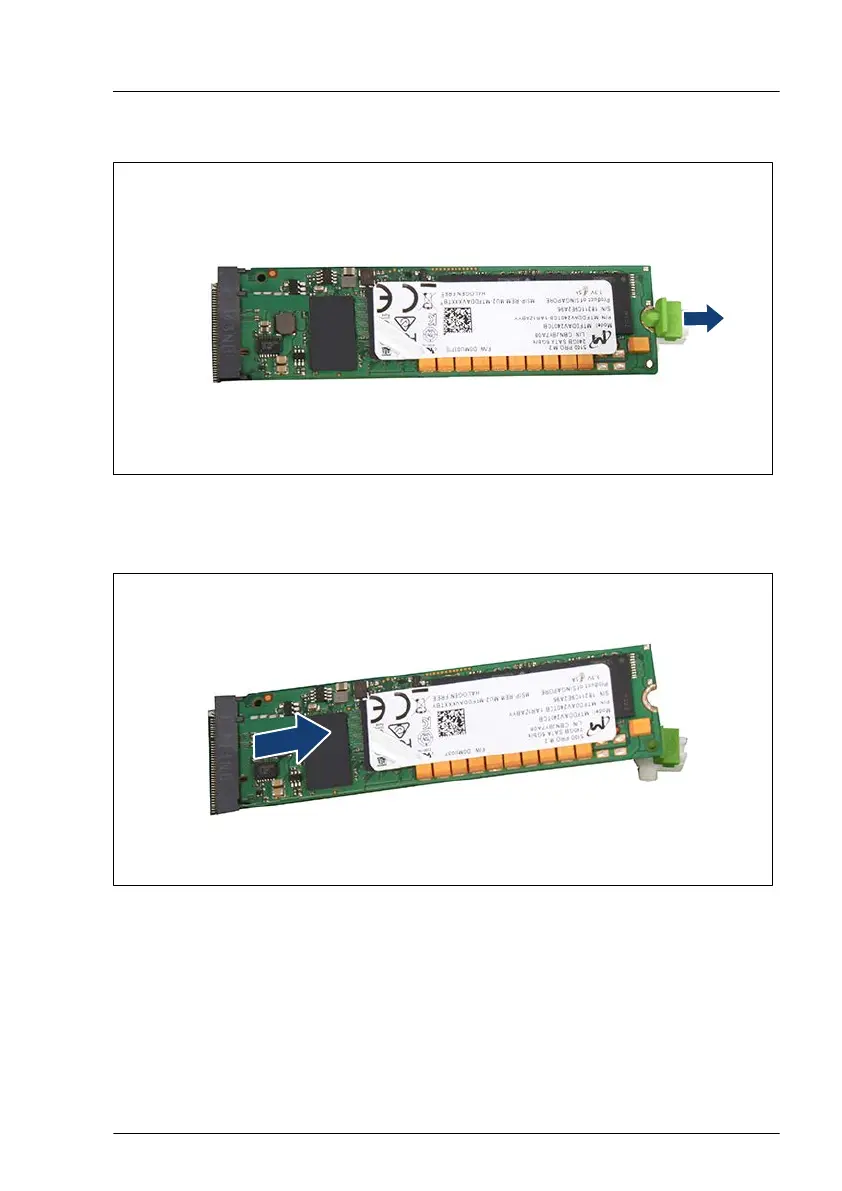

Figure 350: Removing the M.2 SSD (A)
▶
Push the green latch in direction of the arrow.
Figure 351: Removing the M.2 SSD (B)
▶
Take the M.2 SSD out of its slot at a slight angle.
▶
If applicable, remove the second M.2 SSD in the same way
.
System board and components
RX2540 M6 Upgrade and Maintenance Manual 503
