Tools: Phillips PH2 / (+) No. 2 screw driver (for cover 2)
Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 52
.
▶
"Shutting down the server" on page 52.
▶
"Disconnecting the power cord" on page 53.
▶
"Getting access to the component" on page 56.
▶
If applicable, "Removing the riser module 1" on page 70.
Removing the Dual microSD 64GB Enterprise

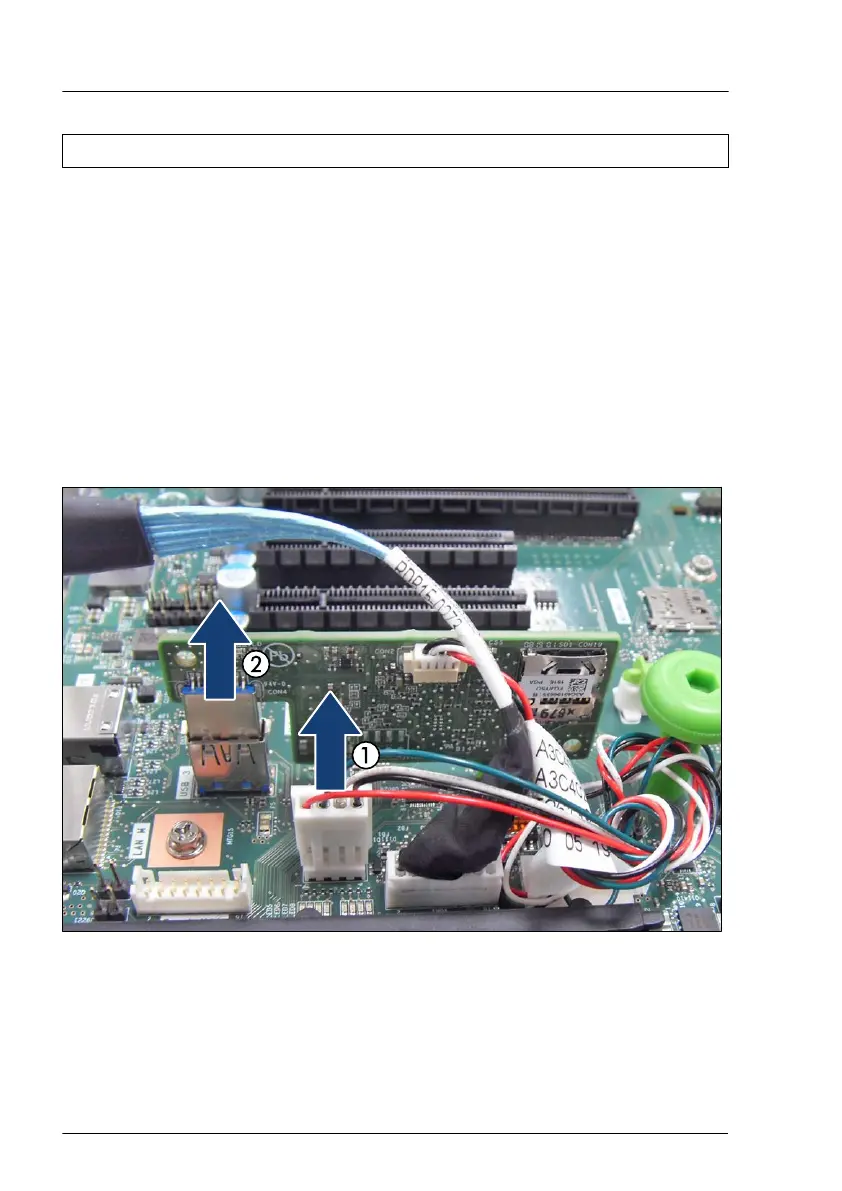

Figure 357: Removing the Dual microSD 64GB Enterprise (A)
▶
Disconnect the cable from the connector "ROC" on the system board (1).
▶
Pull the Dual microSD 64GB Enterprise out of its connector (2).
System board and components
510 Upgrade and Maintenance Manual RX2540 M6
