Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

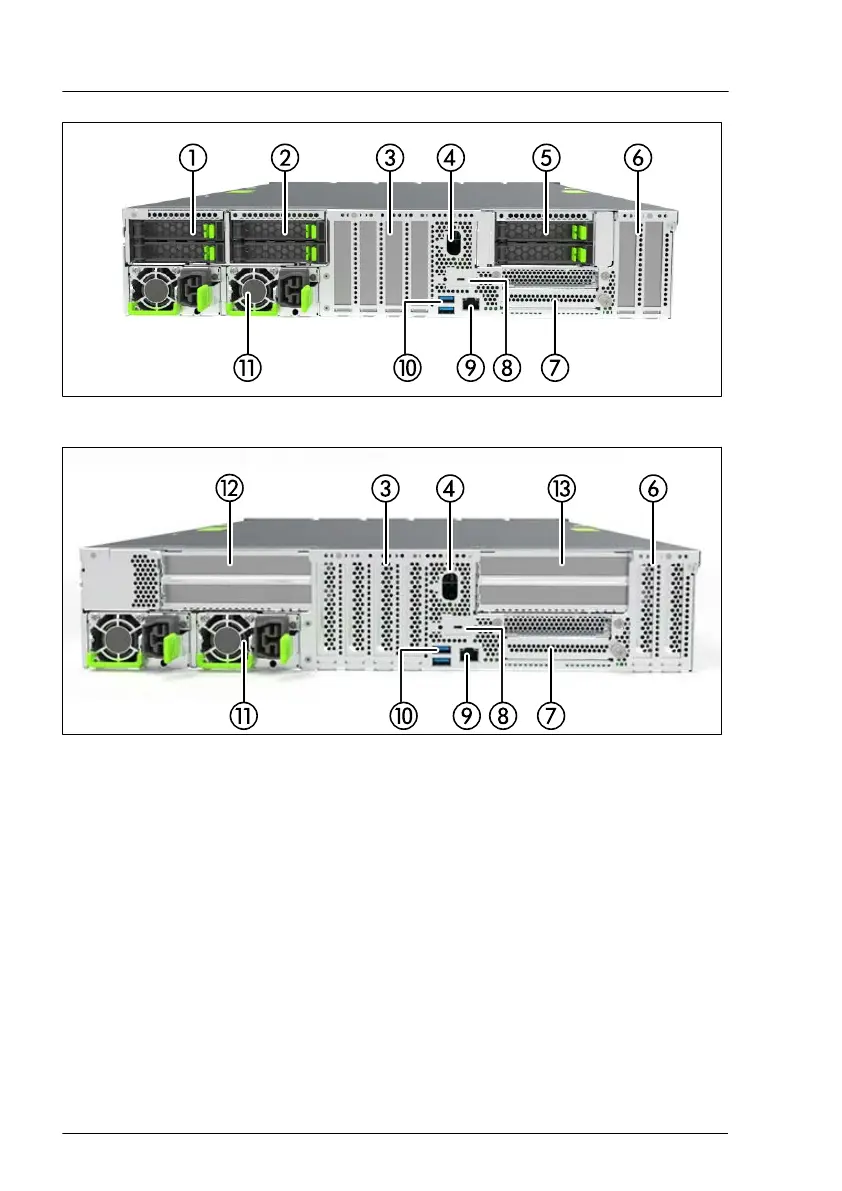

Figure 373: Server rear (configuration with rear HDD cages)
Figure 374: Server rear (configuration with riser modules)
1 HDDs / SSDs / PCIe SSDs
2
HDDs / SSDs / PCIe SSDs
3
PCI slots 5-8
4 Rear VGA
5 HDDs / SSDs / PCIe SSDs
6 PCI slots 1-2
7 OCP module
8 Serial interface
9 Management LAN
10 USB 3.0 (2x)
11 Up to two PSUs / dummy cover
12 PCIe slots 9 or 9/10 / riser module 2
13 PCIe slots 3 or 3/4 / riser module 1
The OCP module (7) and the serial interface (8) are options. If no OCP module
has been ordered, you find a dummy cover installed in this place (7).
Appendix A
538 Upgrade and Maintenance Manual RX2540 M6

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
