Fujitsu PRIMERGY RX2540 M6 Upgrade And Maintenance Manual

3RX2540 M6

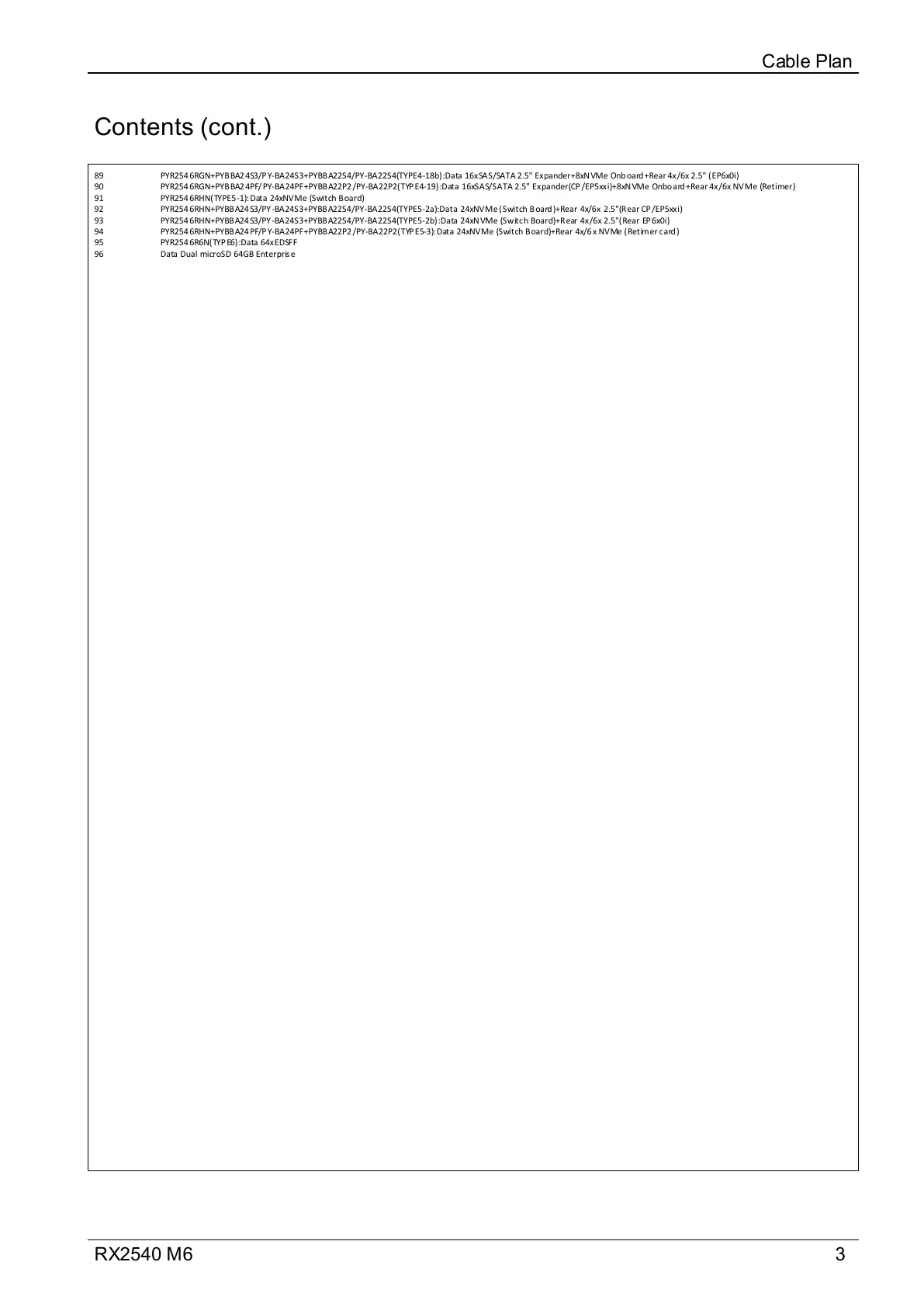

Contents (cont.)
Cable Plan
89 PYR2546RGN+PYBBA24S3/PY-BA24S3+PYBBA22S4/PY-BA22S4(TYPE4-18b):Data 16xSAS/SATA 2.5" Expander+8xNVMe Onboard+Rear 4x/6x 2.5" (EP6x0i)
90 PYR2546RGN+PYBBA24PF/PY-BA24PF+PYBBA22P2/PY-BA22P2(TYPE4-19):Data 16xSAS/SATA 2.5" Expander(CP/EP5xxi)+8xNVMe Onboard+Rear 4x/6x NVMe (Retimer)
91 PYR2546RHN(TYPE5-1):Data 24xNVMe (Switch Board)
92 PYR2546RHN+PYBBA24S3/PY-BA24S3+PYBBA22S4/PY-BA22S4(TYPE5-2a):Data 24xNVMe (Switch Board)+Rear 4x/6x 2.5"(Rear CP/EP5xxi)
93 PYR2546RHN+PYBBA24S3/PY-BA24S3+PYBBA22S4/PY-BA22S4(TYPE5-2b):Data 24xNVMe (Switch Board)+Rear 4x/6x 2.5"(Rear EP6x0i)
94 PYR2546RHN+PYBBA24PF/PY-BA24PF+PYBBA22P2/PY-BA22P2(TYPE5-3):Data 24xNVMe (Switch Board)+Rear 4x/6x NVMe (Retimer card)
95 PYR2546R6N(TYPE6):Data 64xEDSFF
96 Data Dual microSD 64GB Enterprise

Fujitsu PRIMERGY RX2540 M6 Specifications

General

Memory Slots	32 DIMM slots
Form Factor	2U rack server
Processor	Intel Xeon Scalable Processors (3rd generation)
Storage	Up to 24 x 2.5" or 12 x 3.5" drives
RAID Support	RAID 0, 1, 5, 6, 10
Network	4 x 1GbE ports (onboard), optional 10/25GbE
Power Supply	800 W, 1200 W, 1600 W
Expansion Slots	Up to 8x PCIe Gen4 slots
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Management	iRMC S5
