Copyright 2021 FUJITSU LIMITED

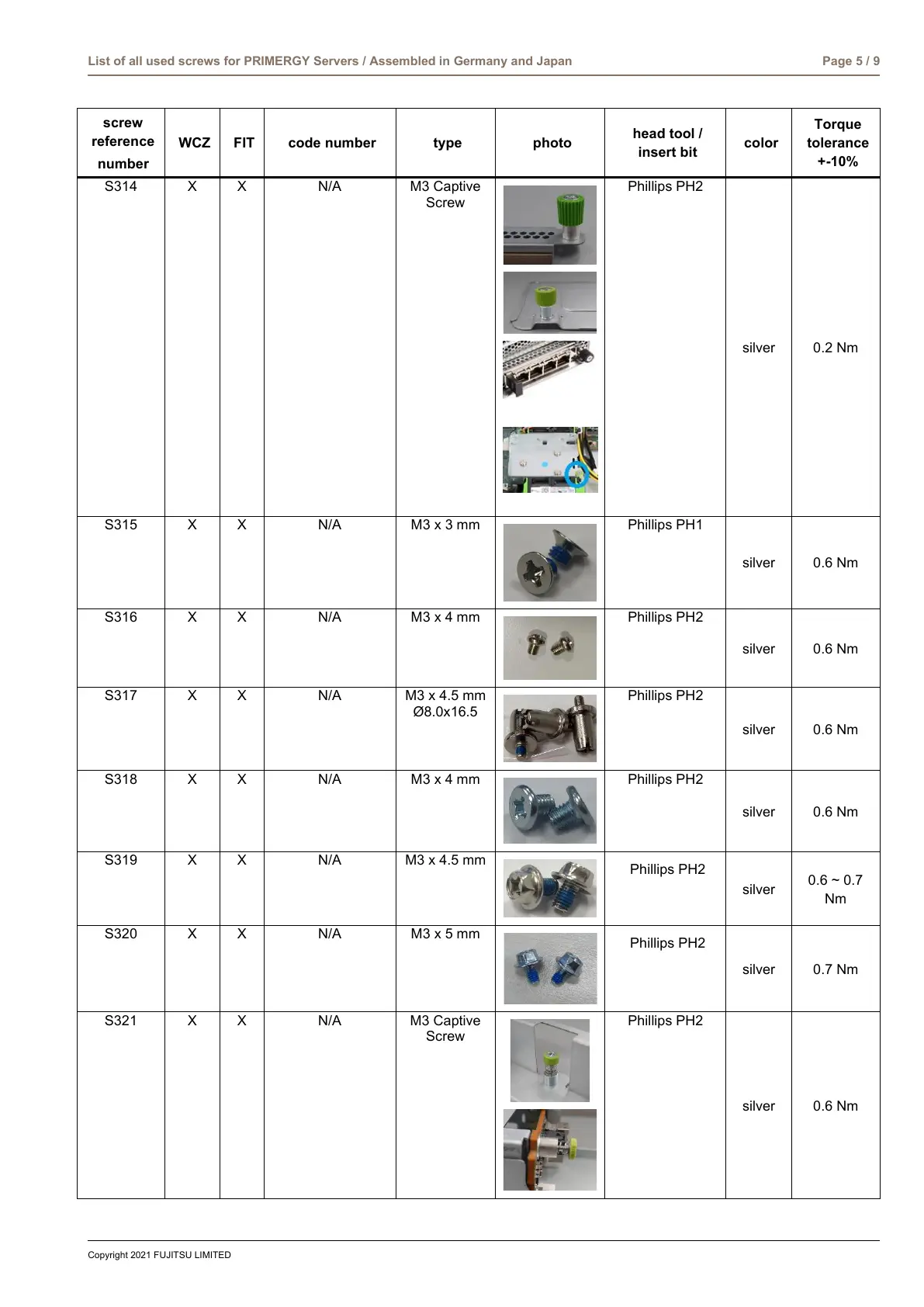

List of all used screws for PRIMERGY Servers / Assembled in Germany and Japan Page 5 / 9
screw
reference
number
WCZ
FIT
code number
type
head tool /
insert bit
color
Torque
tolerance
+-10%
S314
X
X
N/A
M3 Captive
Screw
Phillips PH2
silver
0.2 Nm
S315
X
X
N/A
M3 x 3 mm
Phillips PH1
silver
0.6 Nm
S316
X
X
N/A
M3 x 4 mm
Phillips PH2
silver
0.6 Nm
S317
X
X
N/A
M3 x 4.5 mm
Ø8.0x16.5
Phillips PH2
silver
0.6 Nm
S318
X
X
N/A
M3 x 4 mm
Phillips PH2
silver
0.6 Nm
S319
X
X
N/A
M3 x 4.5 mm
Phillips PH2
silver
0.6 ~ 0.7
Nm
S320
X
X
N/A
M3 x 5 mm
Phillips PH2
silver
0.7 Nm
S321
X
X
N/A
M3 Captive
Screw
Phillips PH2
silver
0.6 Nm
