Installing the riser module 2

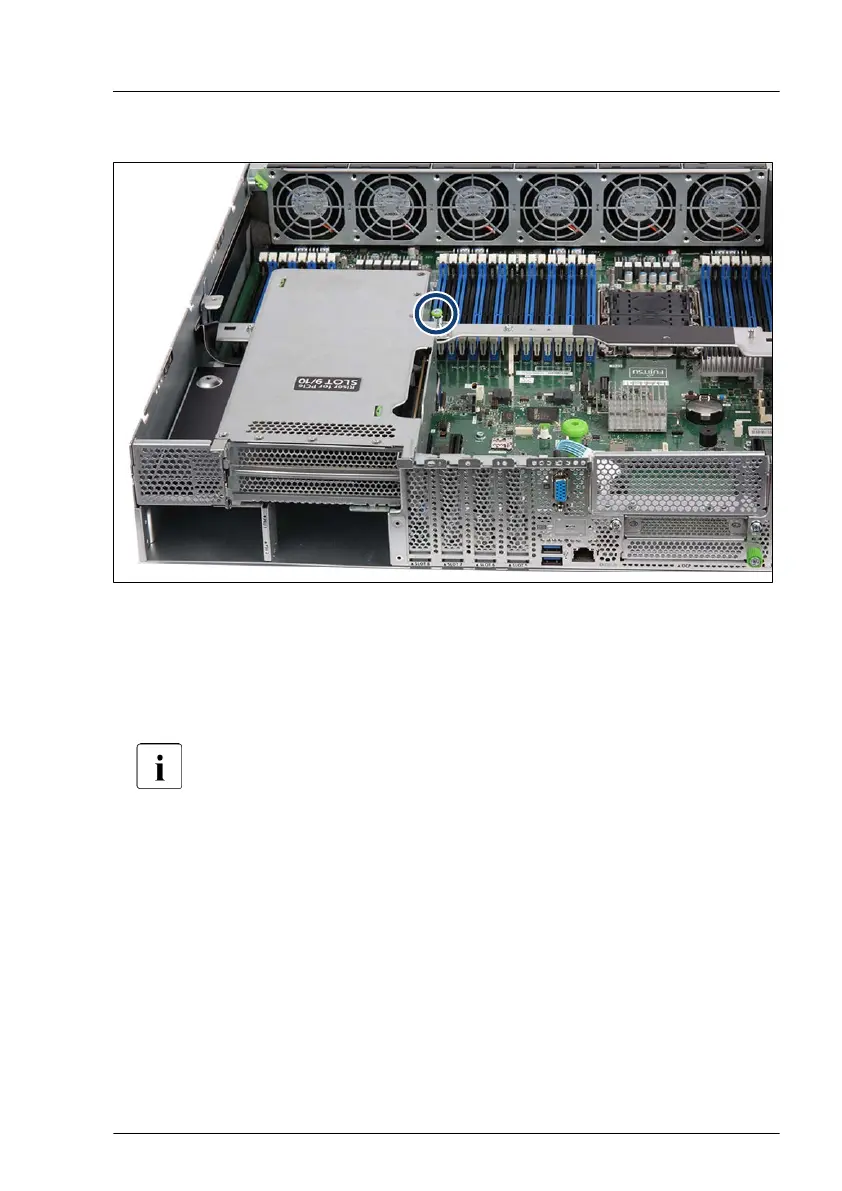

Figure 23: Installing the riser module 2
▶
Insert the riser module.
▶
Fasten the riser module with the knurled screw (see circle).
▶
If applicable, connect internal cables to the expansion card or GPU.
For the cable plan, see "Appendix B" on page 571
.
▶
If applicable, connect an FBU cable to the expansion card, see "Installing
an FBU" on page 317
.
Basic hardware procedures
RX2540 M6 Upgrade and Maintenance Manual 73
