GRASS VALLEY MASTERPIECE User Manual

144
Engineering, User & Panel Configuration

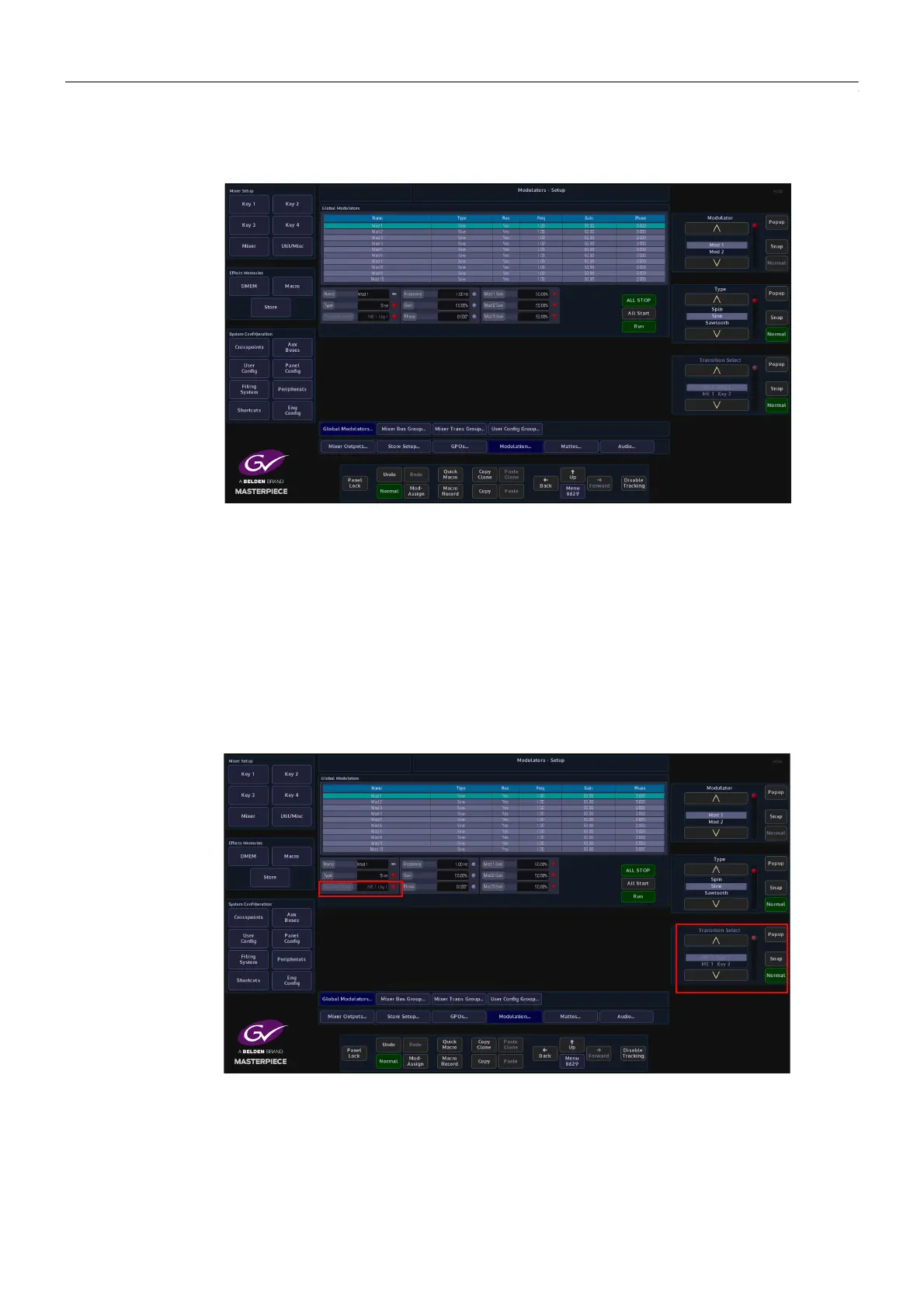

Modulation
Phase - changes the phase of the modulation, range 360° plus complete turns, i.e. 5:180° this is
5 complete turns plus 180°.
An individual modulator setup can be switched On, by selecting an individual modulation
using the Modulator parameter. Next, touch one of the On/Off buttons in the Frequency, Gain
or Phase parameter displays.
Notice that “Yes” has now appeared in the Run column of the table.
All the modulator setups in the table can be started by pressing the {All Start} action button, or
stopped by pressing the {ALL STOP} button.
The Transition Select allows the use of the transition engines to control the level of other
parameters. Using the Transition modulator type it is possible to use the AUTO and T Bar to
control the level of a particular parameter.
If a Transition type Modulator is attached to a 'Store Pan H position' for example, the Store is
then used as a Utility Wipe Border; when the Bgnd Transition takes place the transition moves
the picture within the Store at the Grass Valleye time as the wipe edge.
By determining a Bgnd or Key Bus the modulation will only take effect when that Bgnd or Key
bus is selected in the transition.
