Once back in the “Connected to Masterpiece Mainframe” menu, the user has two choices when
setting up UHD, either touch one of the preset UHD Shows at the top of the menu and UHD will
be setup ready to use or the user can manually setup UHD by following the information
through this section.
Touch the {Engineering Config...} button.
UHD Engineering Config Setup

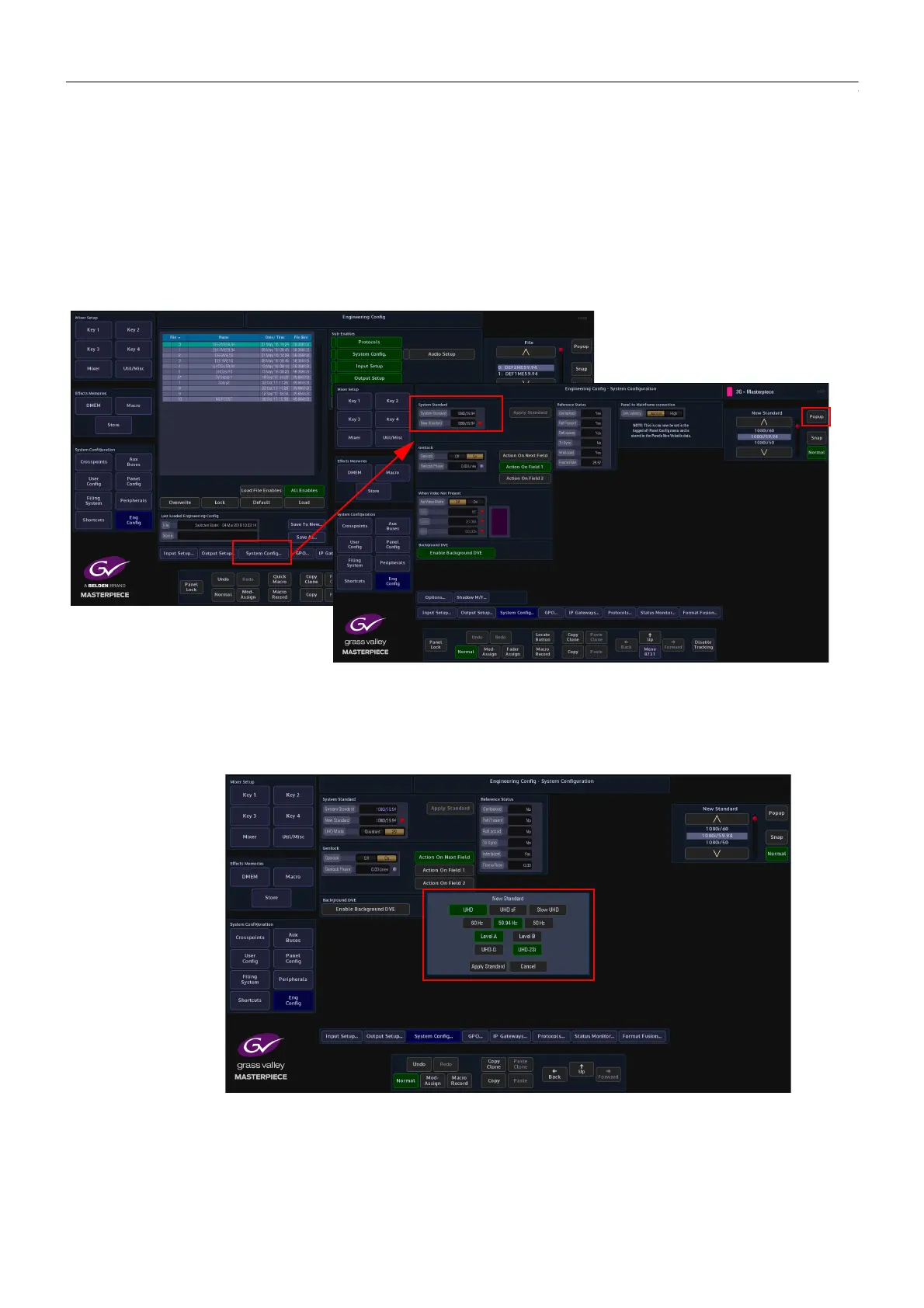

In the Engineering Config main menu, touch the {System Standard...} button to enter the
System Standard menu.
The System Standard menu can be set to “UHD Mode - Quadrant” or “UHD Mode - 2SI”,
however the user can choose between the UHD standards by touching the “Popup” button top
right to reveal a “New Standard” dialog box. From the dialog box the user can select what type
of UHD standard the system is set to, as shown below.
Select between UHD-Q or UHD-2SI, the frequency and the type of UHD required - UHD
Segmented Frame or UHD Slow, then press the {Apply Standard} button.
The next thing to do is to setup the Inputs and Outputs.
