GRASS VALLEY MASTERPIECE User Manual

176
IP Connectivity and Operation
IP Input Menus
Once the IP addresses are set, touch the {Apply All Interfaces & Restart Fin}, this has to be
done to restart the IP Fin.

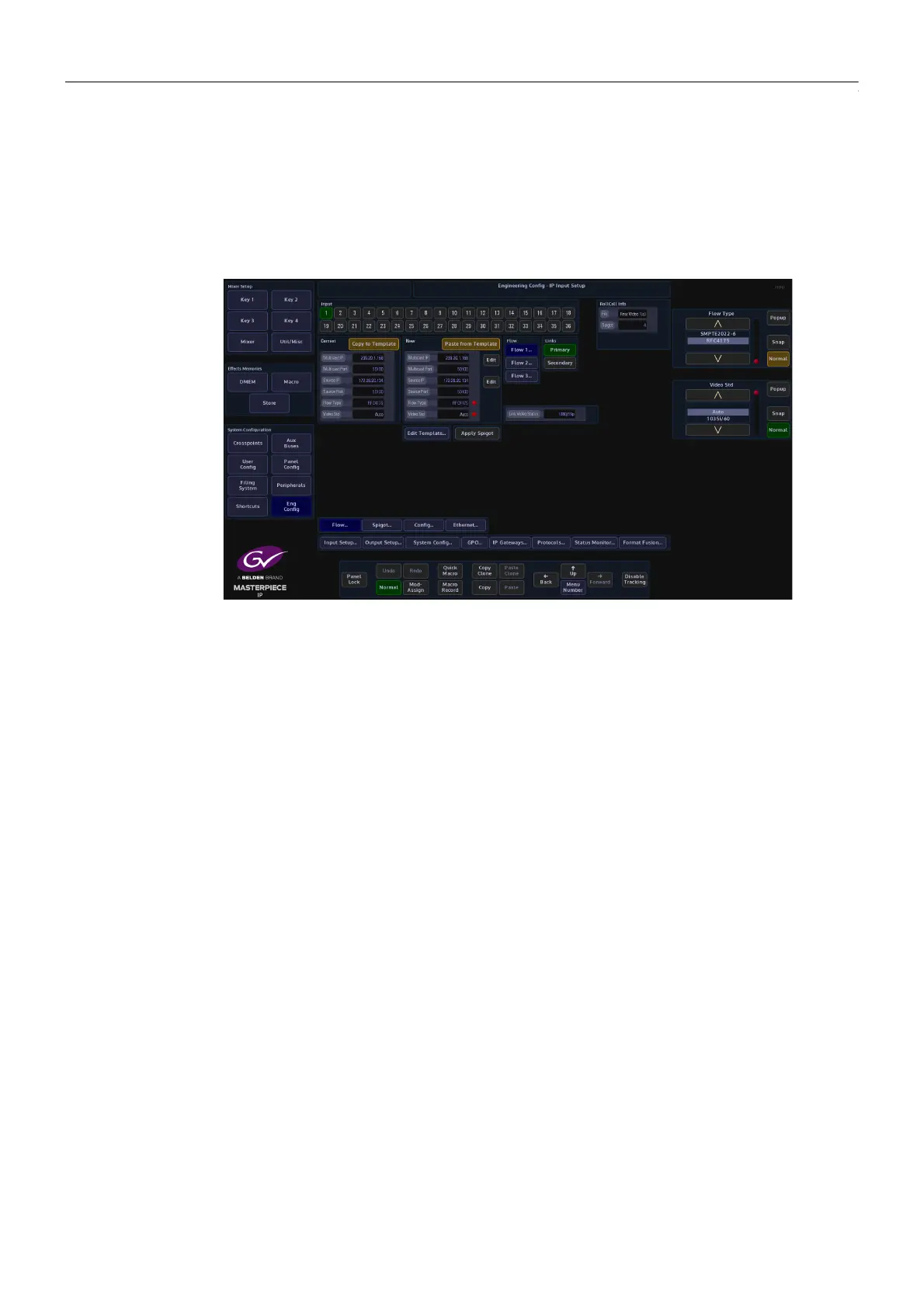

Flow Menu
The Flow menu allows you to setup each individual “Spigot” IP address, Source IP address. Each
Flow needs to have a Multicast IP address and Port as well as the IP address and Port of the
source.
The number of Spigots that are available as inputs are restricted to the type of “Flow Type” that
is selected. This will display the number of inputs available to the selected Fin.
• Flow 1 - This is used for Video
• Flow 2 - This is used for Audio
• Flow 3 - This is Metadata
The “Links” “Primary” and “Secondary” buttons allow separate data to be added for the
Primary and Secondary Links.
The IP addresses, Port numbers and Flow Types can be entered manually, but there is a
template tool which can be used to speed up the setup process.
Once the information is entered into the “New” data field, these settings are set as “Current” by
touching the {Apply Spigot} button.
