SmartPAC 2 with WPC Integration 1126800
SmartPAC 2 Keyboard, Displays Chapter 3 Page 175
and Operating Modes
Stroke Select Key Switch
ENTE R
RESET
PROG RUN
POWER
BRAKE
WAR NI NG
HELP
123
456
987
.
0
CLEAR
SmartPAC 2
F1
F2
F3
F4
F5
F6
F7
F8
CAMBIE
AL ESPA NOL
Stroke Select
key switch
OFF
INCH
SINGLE
STROKE
CONT
OFF
INCH
SIN GLE
STROKE
CONT

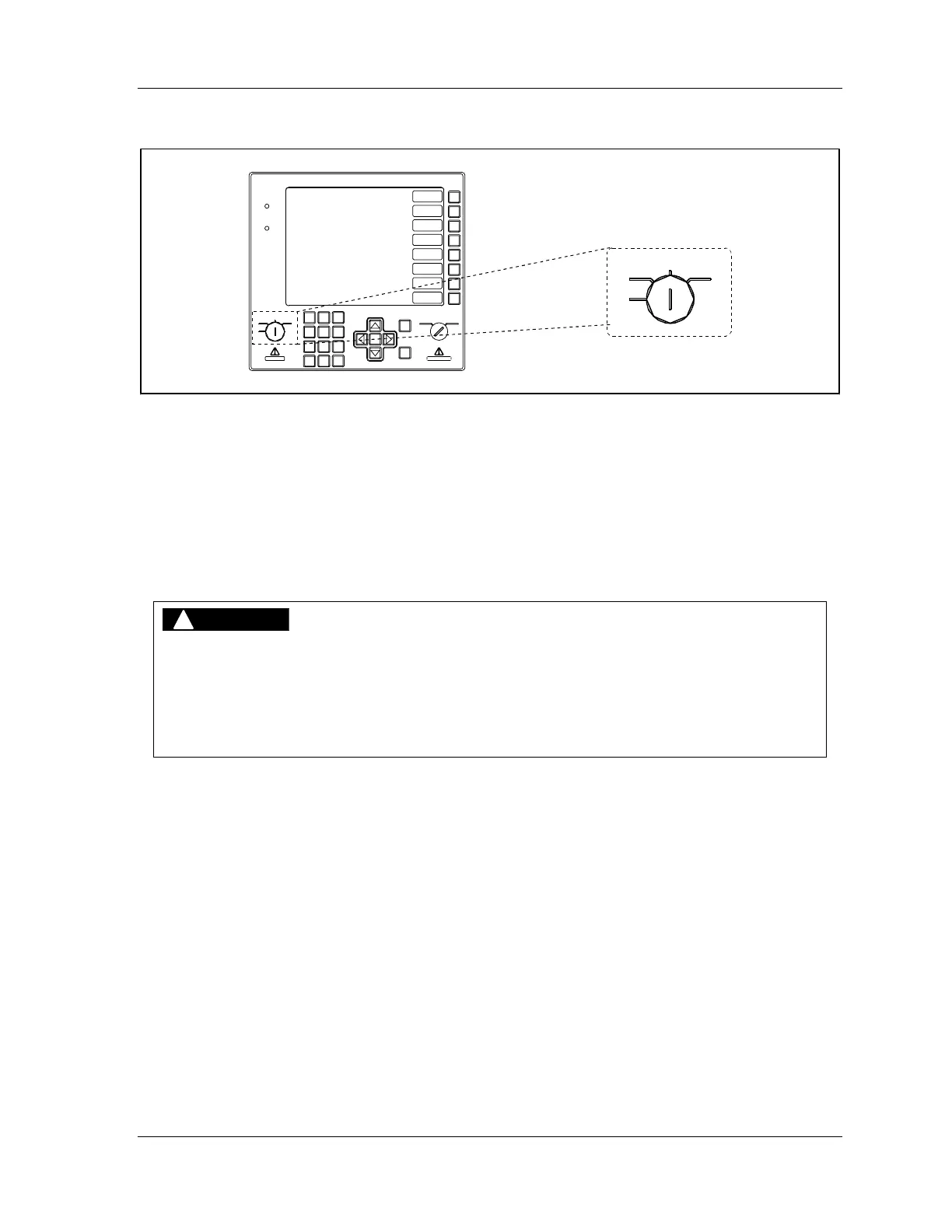

Figure 3 - 4. Stroke Select Key Switch
Use the Stroke Select key switch to select OFF, INCH, SINGLE STROKE or CONT
(continuous) mode of press operation. You can set the key switch to the desired operating
mode and then remove the key to prevent anyone from changing the operating mode.
When the Lockout message appears on the display, clear it by turning the Stroke Select key
switch to OFF and then back to the desired operating mode.
DANGER
!
PRESS NOT PROPERLY GUARDED FOR CONTINUOUS OPERATION
Disconnect the “continuous mode” position of your stroke select switch and cover the
“CONT” label on your control if the press is not properly guarded for use in continuous mode.
See
Failure to comply with these instructions will result in death or serious injury.
