SmartPAC 2 with WPC Integration 1126800
SmartPAC 2 Program Mode Chapter 5 page 303
2. The following display appears. This is your list of cam channels. Now you can select
and set a channel. (If you named your cam channels in Initialization mode, those names
will appear, instead of channel 1, channel 2, etc.)
NOTICE
We are illustrating 16 cams. Depending upon the way that your SmartPAC 2 has been
configured (with ProCam 8 cams or with ProCam 16 cams), your display may vary. We are
showing the ProCamPAC 16 module. Also, if you had named the cam channels in
Initialization mode (Chapter 4), the channel number will be replaced with the name.
F1
F2
F3
F4
F5
F6
F7
F8

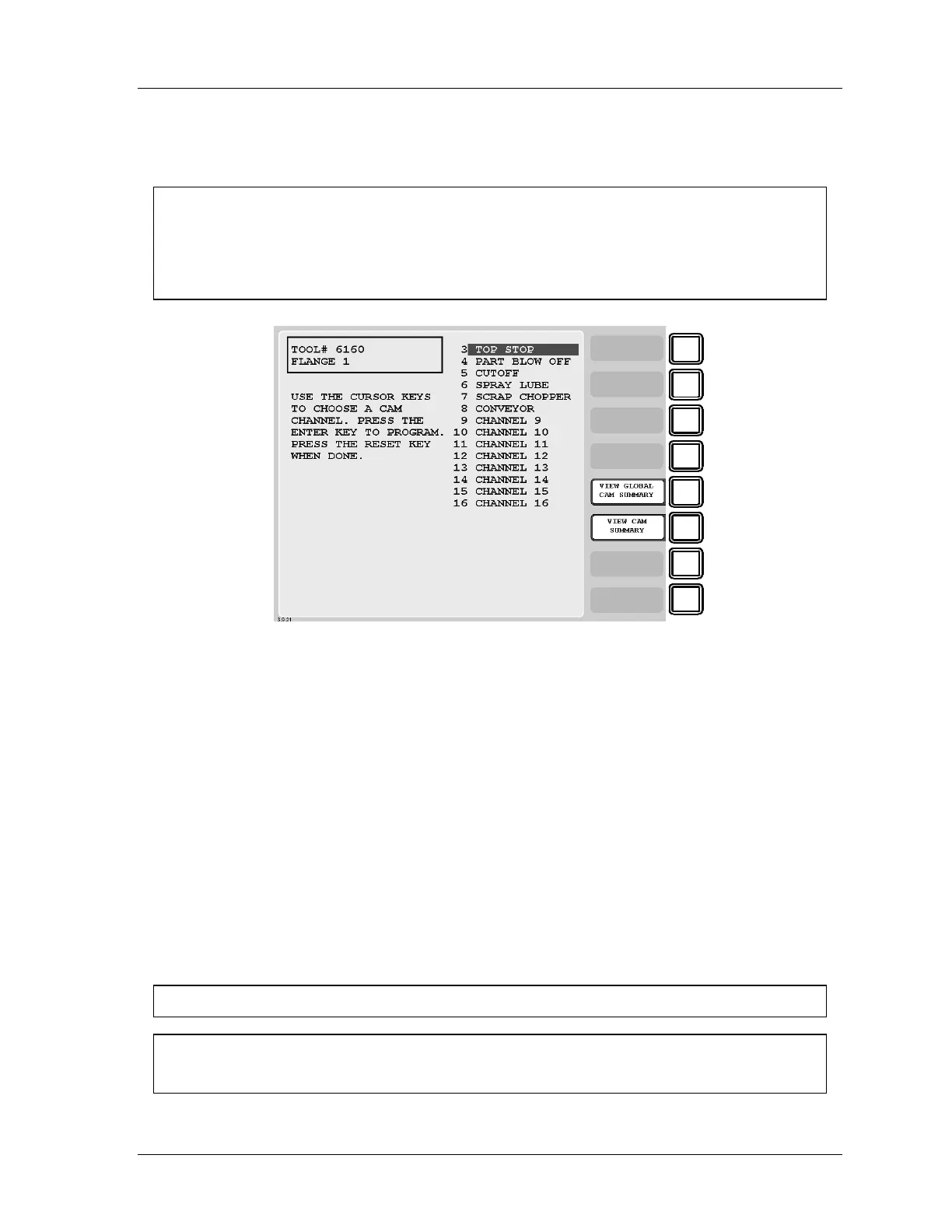

Figure 5 - 27. Cam Program Menu
Go to the page indicated for instructions on performing the following operations:
View Global Cams, next section
View Cam Summary, page 305
Make an ON/OFF Setting for a Channel, page 305
Multiple ON/OFFs for Cam Channels, page 307
Selecting a Channel and Making a Timed Output Setting, page 309
Selecting a Channel and Making an Auto Advance Setting, page 311
Setting DSV ON Channel Timing, page 312
Set Other Channels for the Tool, page 313
Delete Channel Settings, page 313
For HELP press the HELP key located at the center of the cursor (arrow) keys.
NOTICE
You can set multiple ON/OFFs for your cams. See page 307.
