SmartPAC 2 with WPC Integration 1126800
SmartPAC 2 Program Mode Chapter 5 page 305
View Cam Summary
To see the cam settings for the tool you are programming, in the Cam Program menu, Figure
5 - 27, press F6-“View Cam Summary.” A screen appears similar to the next figure,
showing channel number, cam name, type of timing and the timing settings.. The global
cams do not appear in this screen.

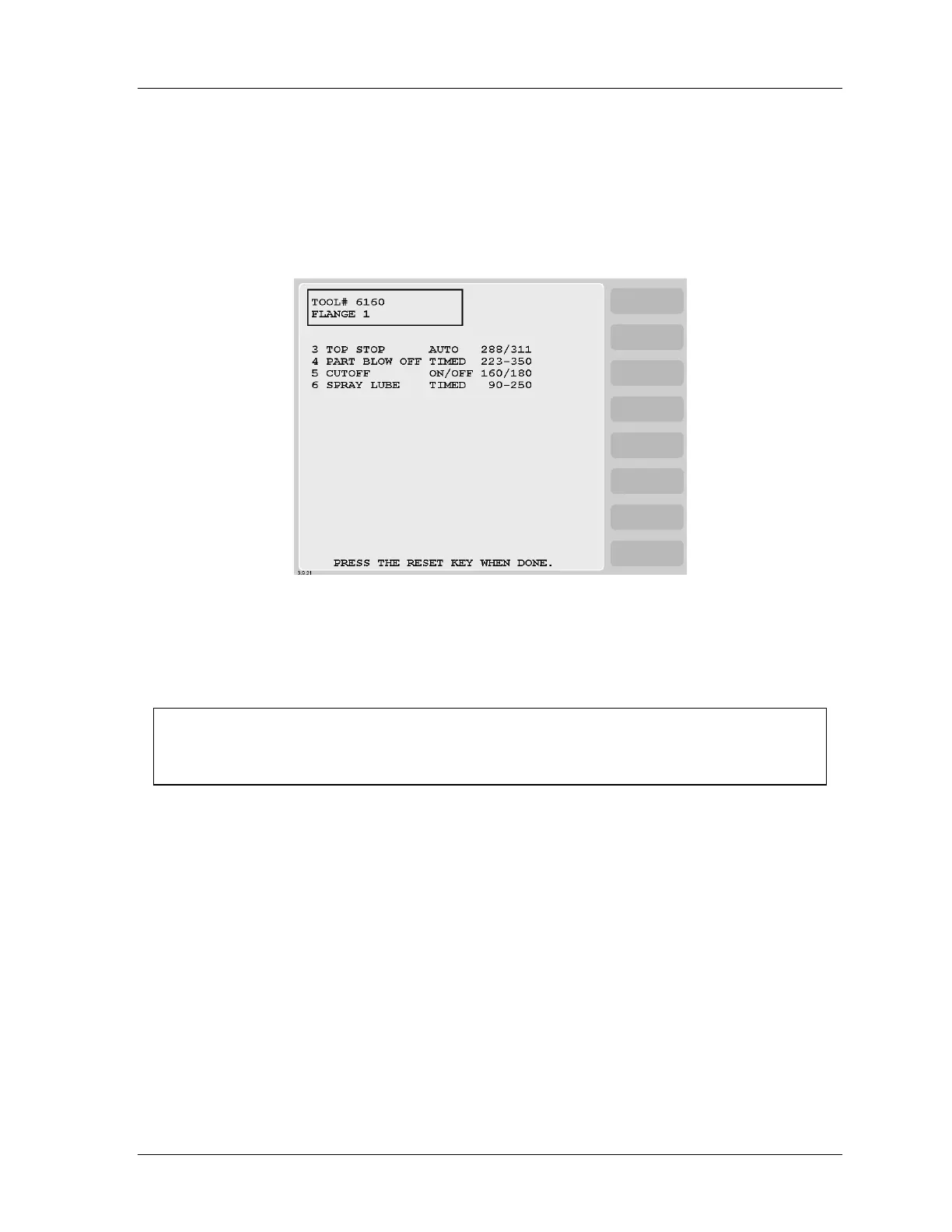

Figure 5 - 29. Cam Summary
Make an ON/OFF Setting for a Channel
NOTICE
You can set multiple ON/OFF cycles for cam channels if you want. See “Multiple ON/OFFs for
Cam Channels,” page 307.
1. Select a channel from the complete list (see previous figure). You will see the display
below. Notice that the tool number and channel name selected are shown in the display.
Select "Program on/off angle.”
To Next Page
