SmartPAC 2 with WPC Integration 1126800
SmartPAC 2 Initialization Mode Chapter 4 page 205
POSITION SENSOR
(INITIALIZATION – POSITION SENSOR)
NOTICE
DISABLE POSITION SENSOR ON SMARTPAC 2/WPC INTEGRATION
An overrun limit sensor is required for SmartPAC 2 with WPC integration; you cannot use a
position sensor. Be sure to disable Position Sensor mode, as instructed below.
This choice enables you to set a number of different settings. When you select the
POSITION SENSOR choice in the main Initialization menu, a display appears similar to that
in the next figure. You should disable the position sensor mode with a SmartPAC 2 – WPC
integration system. To make this and other settings see the following sections:
• POSITION SENSOR MODE: Should be disabled. See next section.
• RESOLVER MOTION MODE, page 206
• TOOL NUMBER MODE, page 206
• COUNTER SETUP MODE, page 208

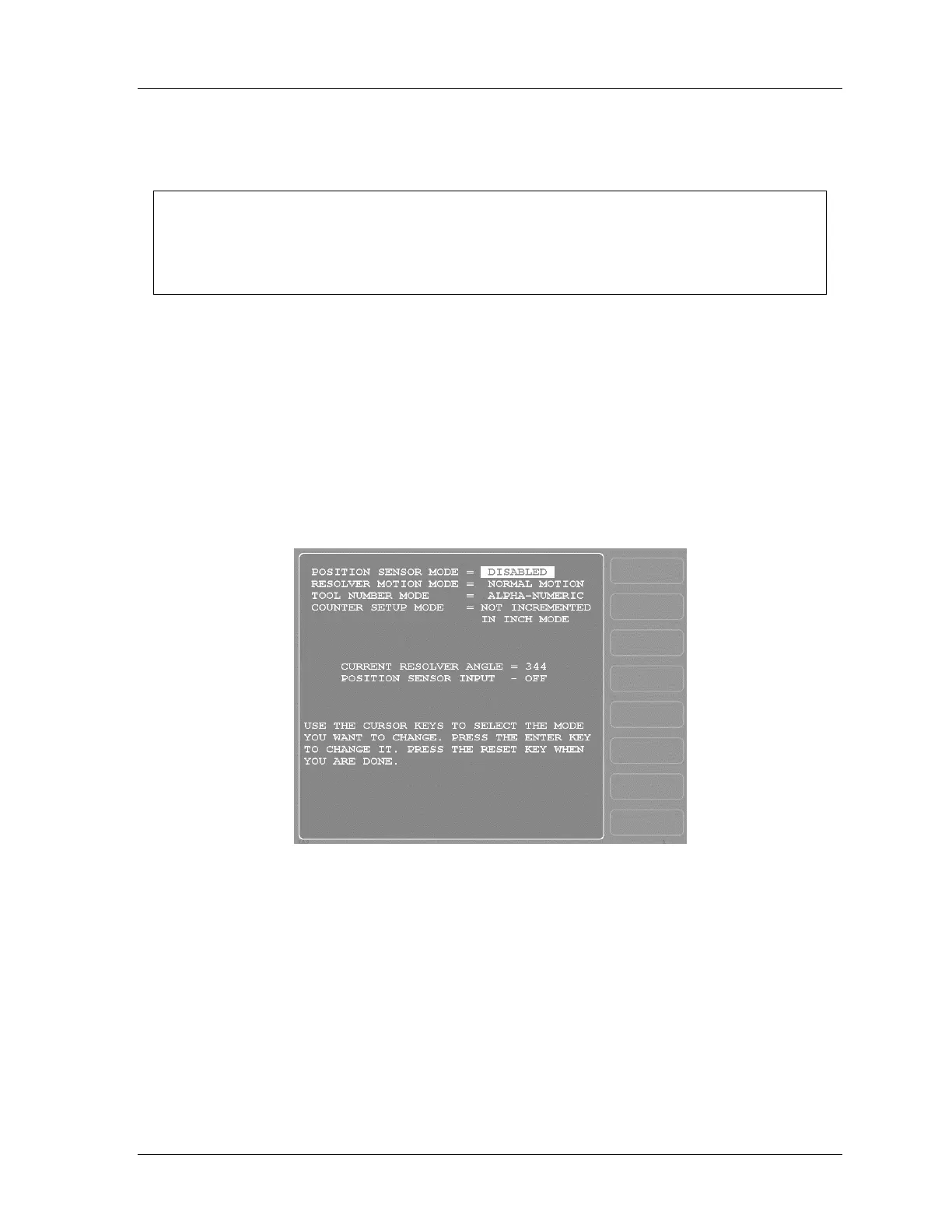

Figure 4 - 4. Position Sensor Display
Position Sensor Mode
(INITIALIZATION – POSITION SENSOR)
Follow the instructions below to disable position sensor mode. To operate SmartPAC 2 with
WPC, this must be disabled.
1. This entry should read “DISABLED,” which is the factory setting. If it does not read
“disabled,” press ENTER so that it does say “disabled.”
2. Press RESET when done.
