1126800 SmartPAC 2 with WPC Integration
Page 198 Chapter 3 SmartPAC 2 Keyboard, Displays
and Operating Modes
4. To set the OFF angle use either the UP () or DOWN () cursor keys. In this example,
press the DOWN () cursor key. You can hold it down and the OFF edge of the arc will
keep moving until you let up. The OFF edge of the arc moves counter-clockwise. Stop
when the OFF edge is at 270°. Check the OFF setting in the box. It should show 270°. If
you go too far, use the UP () cursor key to back up. Now your sensor is on at 239°, off
at 270°. Here is an illustration.

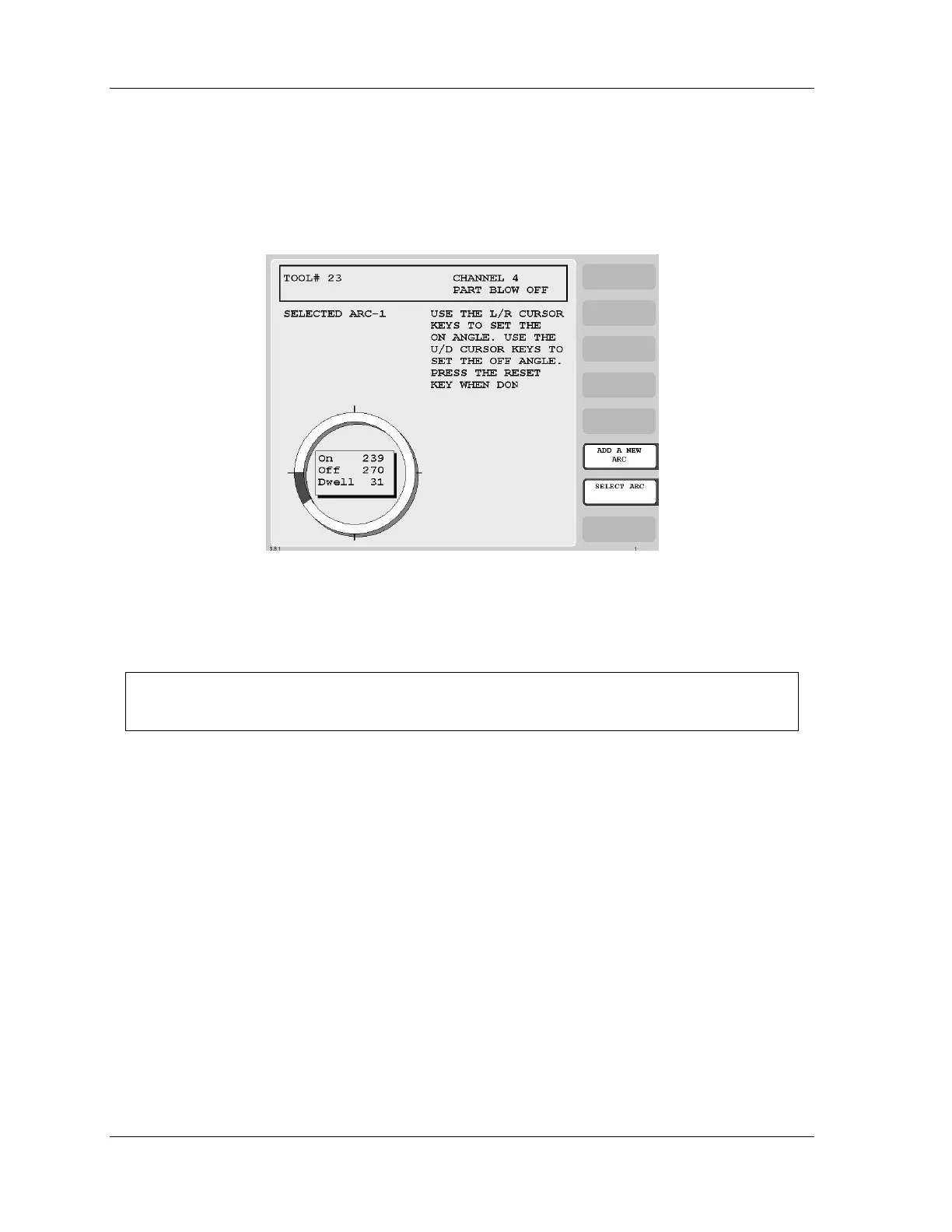

Figure 3 - 27. Setting OFF Angle
You are done making the ON-OFF setting for the cam. You can adjust this setting any time
you want using the cursor keys. The on and off setting will always show in the "ON/OFF"
box.
NOTICE
See page 307 for information on programming multiple ON/OFF arcs.
