1126800 SmartPAC 2 with WPC Integration
Page 186 Chapter 3 SmartPAC 2 Keyboard, Displays
and Operating Modes
SmartPAC 2 Display
PRESS #14
TOOL NUMBER 6160 PART CNTR 51635
FLANGE TWO HAND S.S.
PRESS ANGLE 270
CAMBIE
AL ESPANOL
USE THE CURSOR KEYS ENABLE SENSORS
TO MAKE SELECTIONS. COUNTERS
PRESS ENTER TO CAM SWITCH
ACCESS SELECTION. BRAKE MONITOR
TONNAGE/WAVEFORM
PROCESS MONITOR
FEED CONTROL
PM MONITOR
TOOL INFORMATION
SHUTHGT/CNTRBAL
ERROR LOG
LOAD NEW TOOL
DIALOG MENU
TOGGLE HOT KEYS 1
270
F1
F2
F3
F4
F5
F6
F7
F8
Status box
Descriptive labels for
Function keys and Hot keys
Crank Angle/SPM
readout
Crank angle clock
Instructions
Menu
Run window

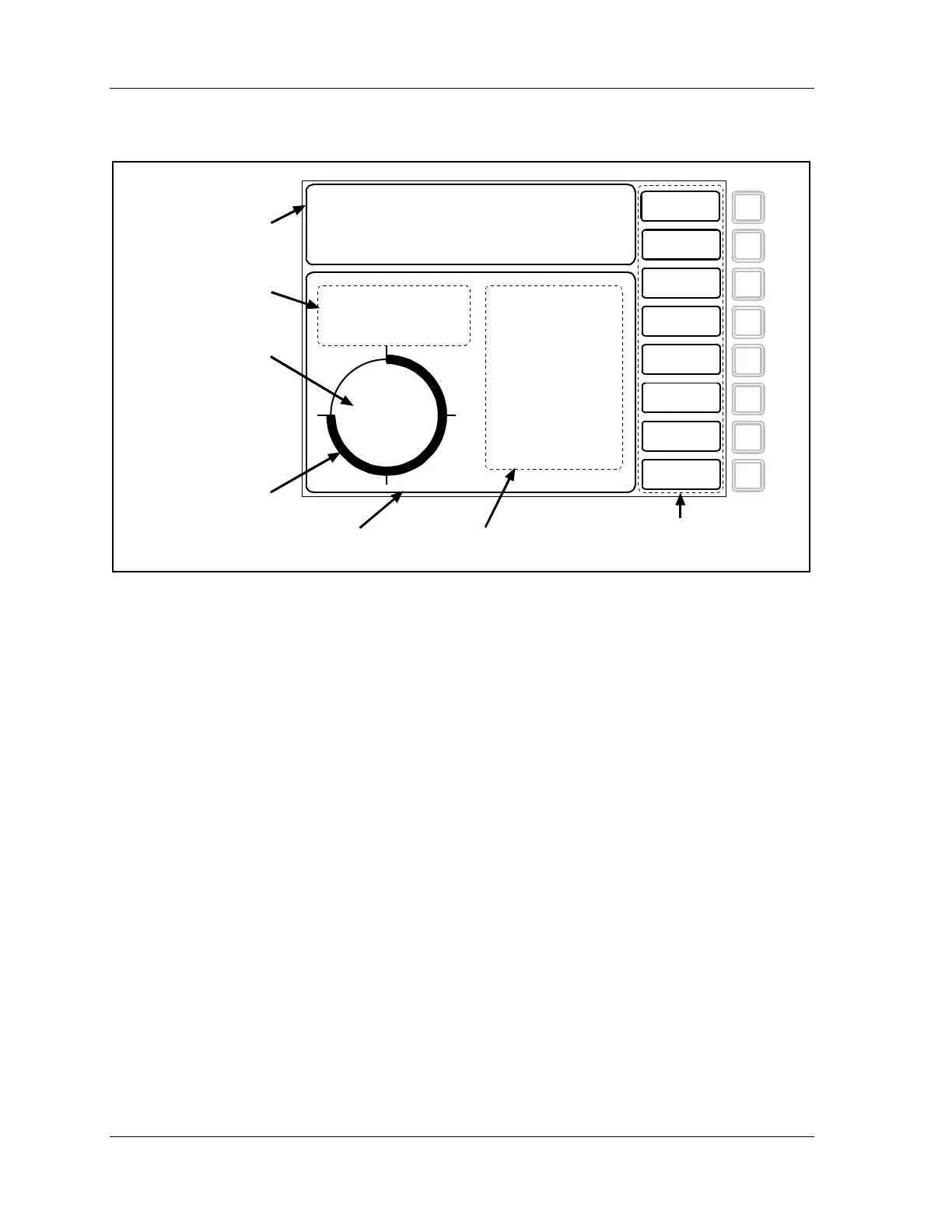

Figure 3 - 15. SmartPAC 2 Display, Run Mode
The SmartPAC 2 display shows at the top a status box that contains information such as the
press name and the press speed or angle. Below that is an area, the Run window, that
contains menu items, instructions, graphics and other components. Next to the function keys
are eight rectangles that contain descriptions of the function key operations, if any function
keys are currently active. In Run mode, if you have programmed Hot keys (see page 185),
their labels show up on the main Run menu screen, with red borders.
In every mode, you progress from menu to menu by use of the ENTER and RESET keys, as
instructed on the display.
