1126800 SmartPAC 2 with WPC Integration
Page 60 Chapter 2 Installing SmartPAC 2 and WPC
4.00
(101.6)
2.69
(68.3)
3.25
(82.6)
3.88
(98.6)
Install with 10-32 screws, 4 places
Dimensions: inch
mm

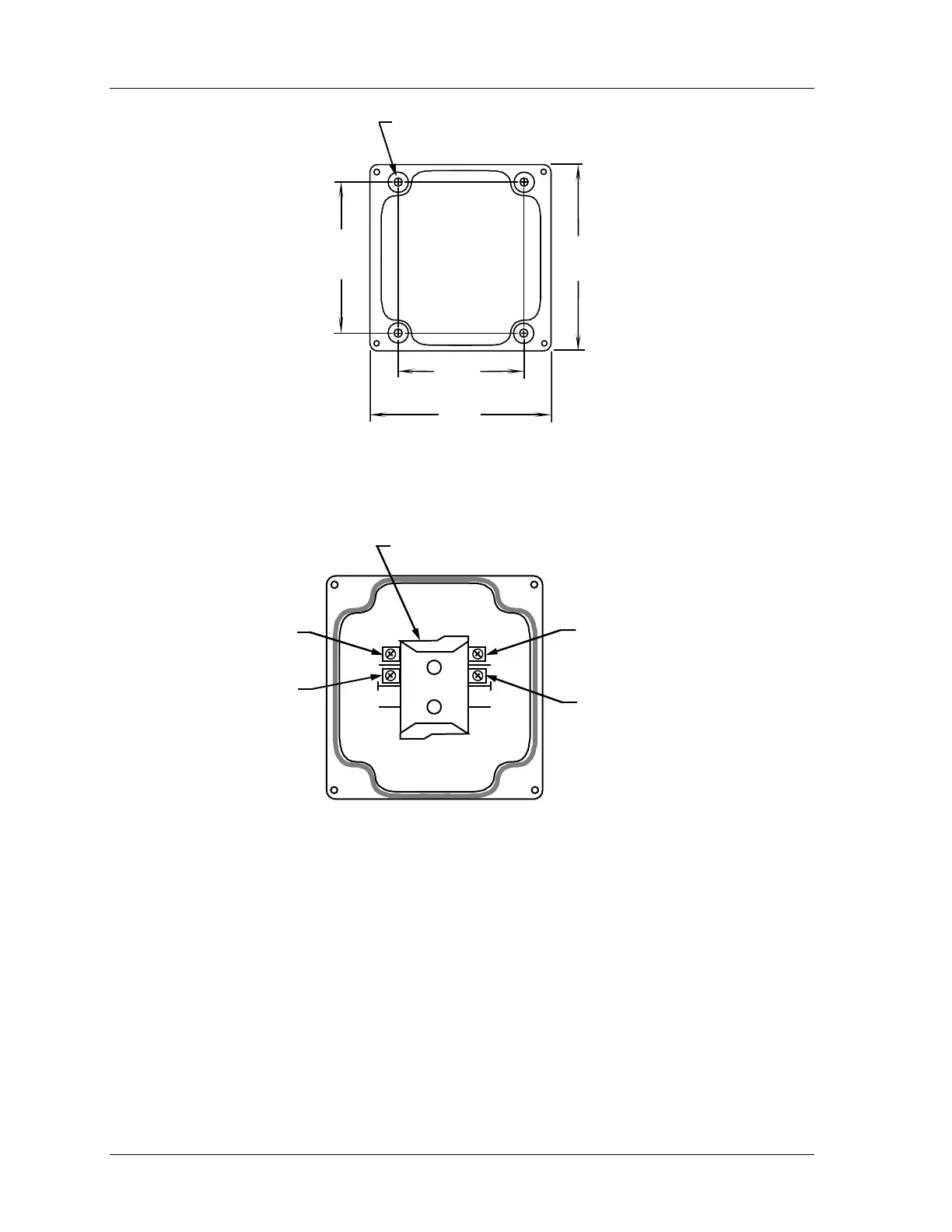

Figure 2 - 13. One-hand Control Switch Base, Showing Mounting Holes
Connections diagram on this surface
12
14
11
13
Figure 2 - 14. Wiring Connections in One-hand Control Switch
(Switch Cover, Bottom View)
“Light Curtain Break” Mode
You can use One-hand Control in “light curtain break” mode. In this mode, you must push
the button on One-hand Control within eight seconds after removing your hands from the
light curtain. Otherwise, the press will not cycle. This mode prevents inadvertent operation
when an operator is loading or unloading parts. If this mode is not used, One-hand Control
cycles the press in single stroke mode whenever you push the button on the One-hand
Control.
