SmartPAC 2 with WPC Integration 1126800
Installing SmartPAC 2 and WPC Chapter 2 page 33
Mounting the WPC Control Enclosure
Refer to Figure 2 - 4 for mounting dimensions for the WPC control enclosure. It does not
matter where you mount the control enclosure since the displays and keypad reside at
SmartPAC 2. However, mount the WPC it so that it will be easy to make wiring connections
and to perform maintenance, when necessary.
The control enclosure does not have to be mounted to the press. It can be mounted on a free-
standing pedestal, console, pendant, or column. For easy access to the interior, make sure that
there is enough room to open the control enclosure door at least 120°. Plastic cable ties and
self-sticking cable clamps are provided in the accessory parts bag. Use them to position the
cable and wiring inside the control enclosure in a neat and orderly fashion.
Dimensions: inches
(mm)
Enclosure depth approx.
9 inches (228 mm). To fully
open the enclosure door, you
must allow clearance of approx.
25 inches (635 mm) from
mounting surface.
17.5 REF
(445)
16.75
(425.5)
17.0 REF
(432)
14.00
(355.6)
0.312 (7.92)
4 PLACES

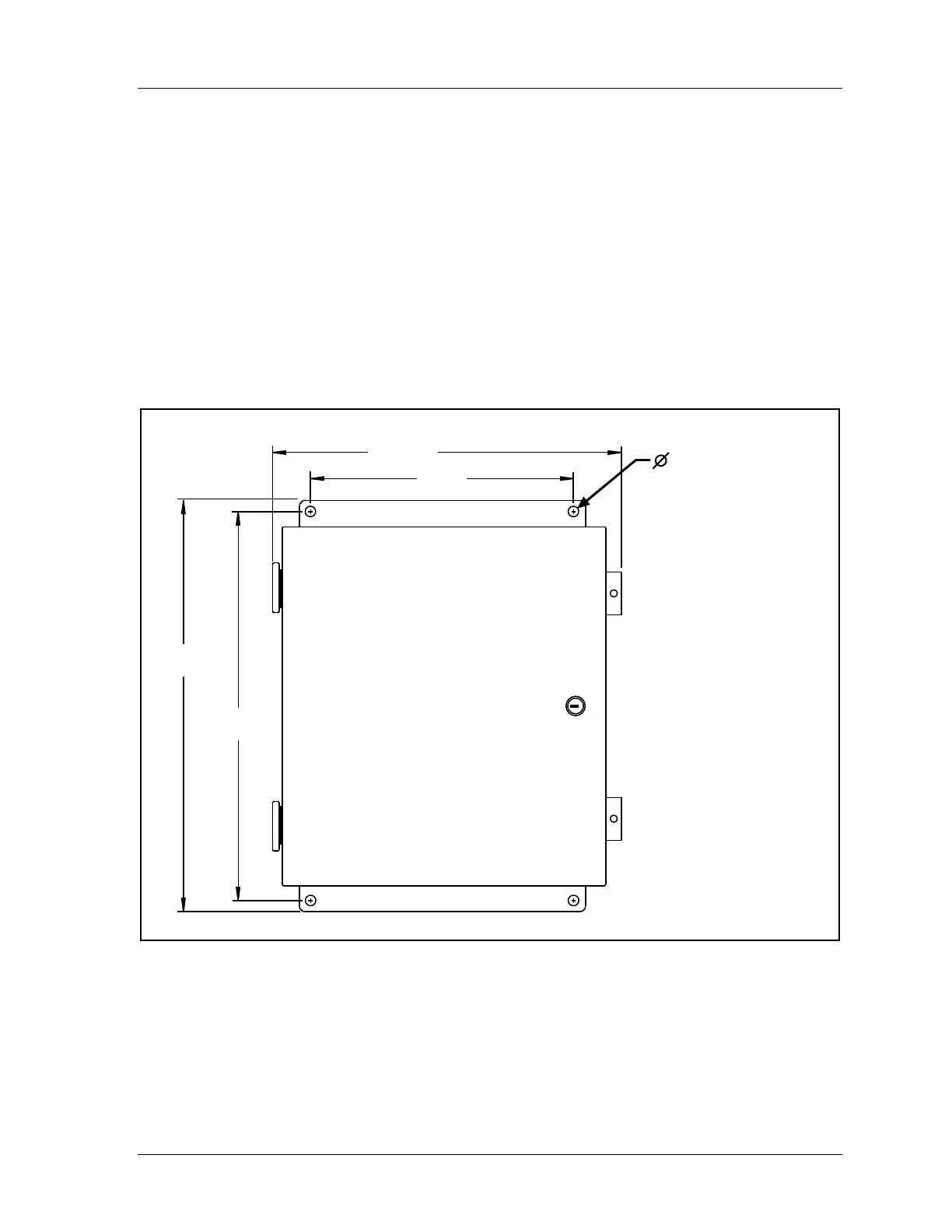

Figure 2 - 4. WPC Mounting Dimensions
