Page 194 Chapter 3 SmartPAC 2 Keyboard, Displays
and Operating Modes
Run Mode

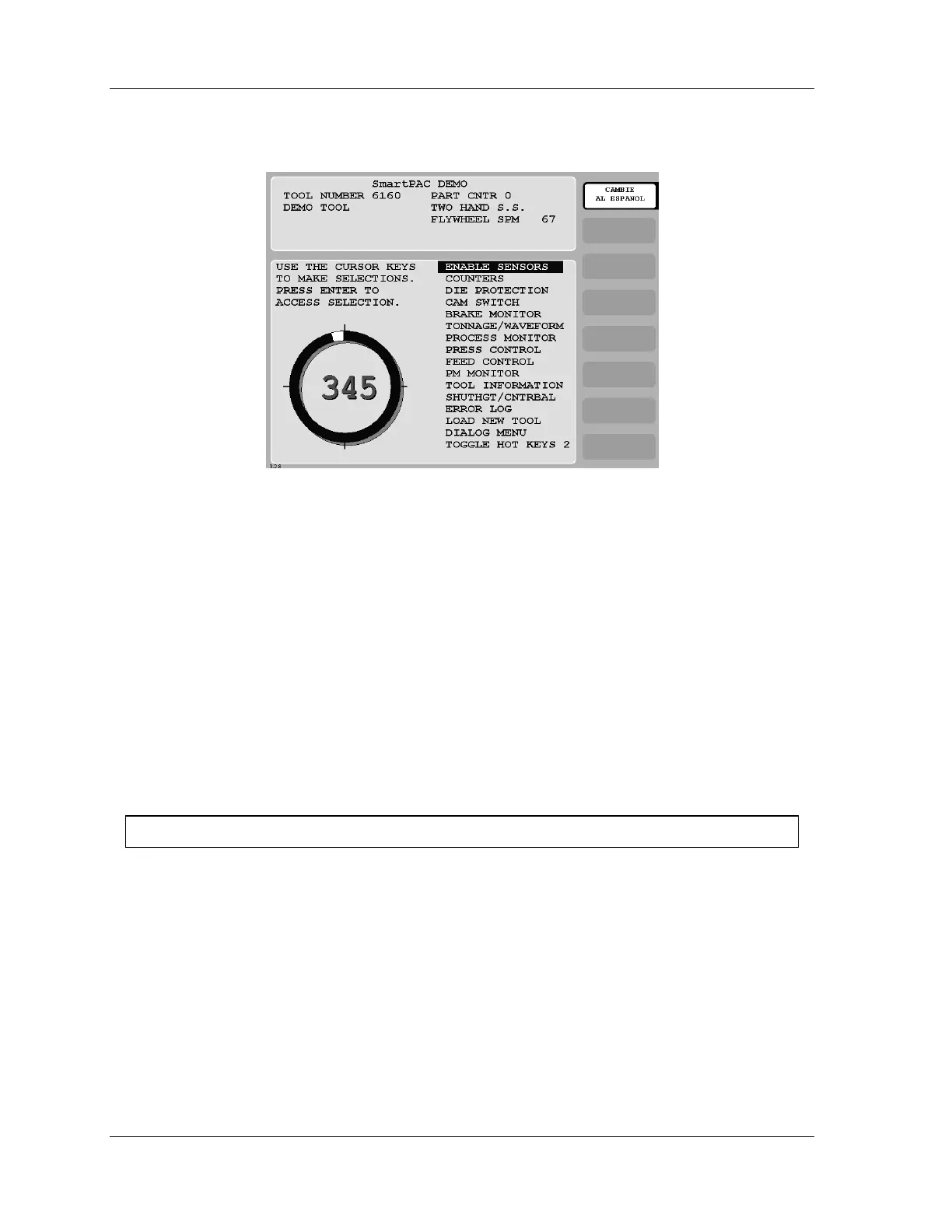

Figure 3 - 22. Run Mode Main (Top) Menu
When the press is running, SmartPAC 2 should be in Run mode. The crank angle clock
diagram in the lower left corner of the display shows the rotation of the crankshaft. When the
press is running in continuous mode, the press speed in strokes per minute is displayed in the
center of the clock diagram. When the press is stopped, or running in inch or single stroke,
the crankshaft angle is displayed.
You may be able to adjust cam timing and perform other operations in Run mode, if allowed
by the security access settings (see “CAM SWITCH (Optional),” page 340).
The figure above shows the main Run menu. The next figure shows examples of how to
navigate through the SmartPAC 2 menus in Run mode.
See Chapter 6 for detailed instructions on how to use SmartPAC 2 in Run mode.
For HELP press the HELP key located at the center of the cursor (arrow) keys.
