1126800 SmartPAC 2 with WPC Integration
Page 92 Chapter 2 Installing SmartPAC 2 and WPC
Installing the DiPro Remote Connection Box
If you are using the DiPro RCB with your SmartPAC 2, it should be installed near the die
opening of the press where it can easily be reached but also is protected from lubricant and
coolant splash or drip. The RCB is wired permanently to SmartPAC 2. The RCB can connect
up to six sensors to SmartPAC 2, and is supplied with the interconnect cable already
installed. Detectalite and impact sensors cannot be used with the RCB.
To install and wire the DiPro RCB:
1. Mount the RCB to the press with the shock mounts provided using the mounting holes
on each flange. Make sure sensor cables can be easily connected to it and that the RCB
cable will reach SmartPAC 2.
2. Connect the RCB cable to SmartPAC 2’s terminal block TB501 (if DiPro 8) or TB551
(if DiPro 16). If you are connecting a second RCB to SmartPAC 2, connect to terminal
block TB552 at SmartPAC 2’s DiPro 16. Refer to the wiring in the following tables.
Because SmartPAC 2 is rated NEMA 12 (protected against dust and oil), you must use
conduit of the same rating and make proper connections to ensure NEMA 12 protection
with the enclosure.
3. Plug the connector into TB501 (or TB551). See Figure 2 - 40. This connector can only
go one way. Double check your connections to make sure you started at the right end
when connecting wires.
SENSOR INPUTS
Di Pro RCB
456
GND
123
®

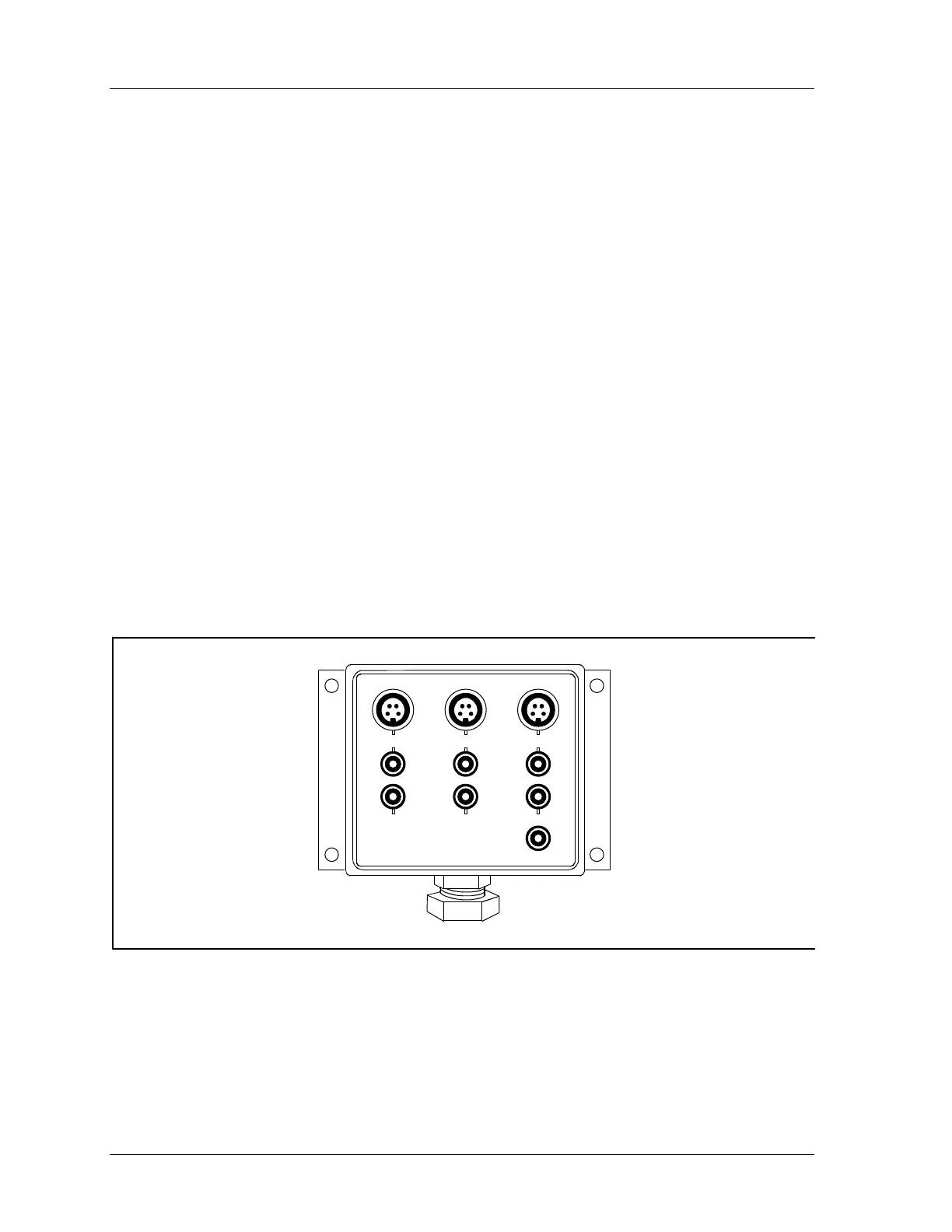

Figure 2 - 26. DiPro Remote Connection Box for Sensors
To Next Page
