Honeywell SmartPAC 2 - Figure 2 - 1. Installation Overview

SmartPAC 2 with WPC Integration 1126800
Installing SmartPAC 2 and WPC Chapter 2 page 29
Overrun limit sensor
Timing chain
Resolver
Crankshaft
Dual Safety
Valve (DSV)
Air pressure
switch
Motor
Control
Resolver,
overrun
limit
sensor,
and air
pressure
switch
wiring
Operator Station
Wintriss
Clutch/Brake
Control
SmartPAC 2
AC power
Resolver, comms,
Estop, Top stop, DSV
input check wiring
AC high voltage wiring
(from customer control
transformer)
DSV
wiring
Connections to
option modules,
cam outputs,
DSI 2, etc.

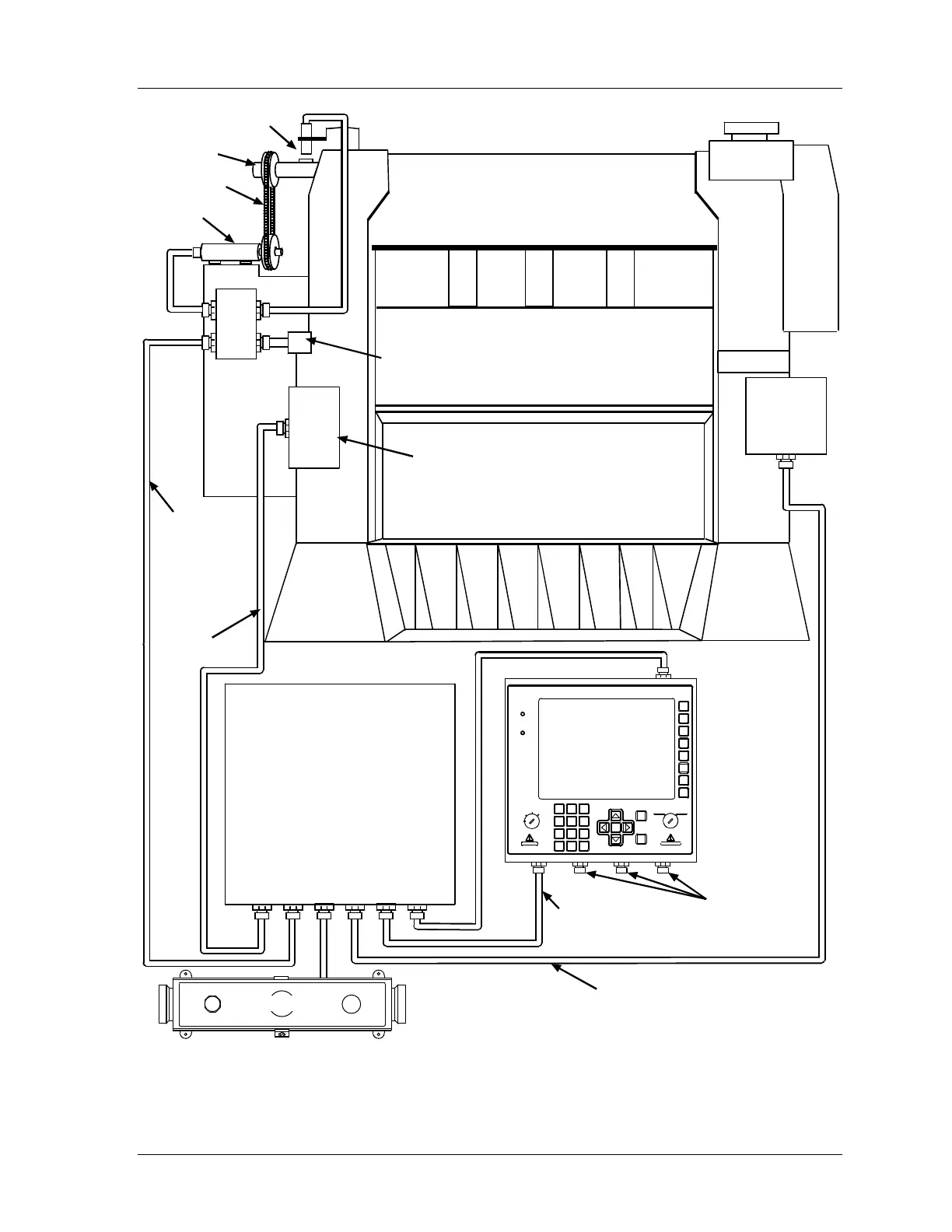

Figure 2 - 1. Installation Overview
