1126800 SmartPAC 2 with WPC Integration
Page 48 Chapter 2 Installing SmartPAC 2 and WPC
3. Plug the connector end of the cable into the operator station.
4. At the other end of the cable, connect the wires to the control enclosure main connector
terminals, as shown in Table A at the end of the manual and wiring diagram Figure 2 at
the end of this manual. For a dual operator station installation, see wiring diagram Figure
2 at the end of this manual.
Place the operator station in a temporary location, on the floor or on a cart. Then wire the
operator station to the control enclosure and continue with all other installation, checkout
steps, and operation procedures in Chapters 2 and 3. After you find the proper safety
distance (“Calculating the Safety Distance,” page 348), you can permanently mount the
operator station at that distance.
RESET
MUTE
EMERGENCY
STOP
PALM
TIME
PRIOR
ACT
TOP
STOP
5.8
(148)
REF
4.69
(119.1)
16.75
(425.5)
R
U
N
/
I
N
C
H
R
U
N
/
I
N
C
H
5.50
(139.7)
21.25
(539.8)
Dimensions:
inches
(mm)

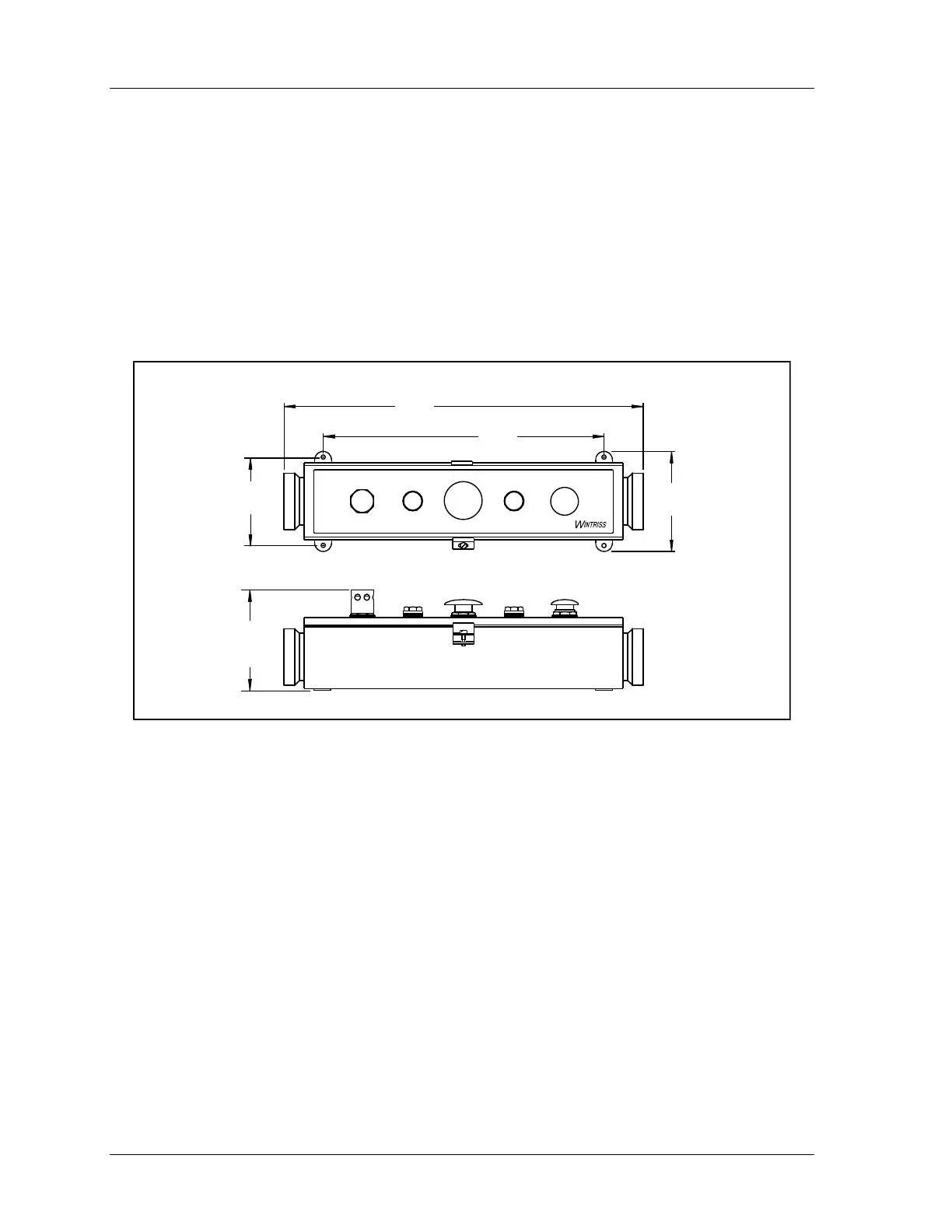

Figure 2 - 9. Operator Station, Side Buttons
