Honeywell SmartPAC 2 User Manual

1126800 SmartPAC 2 with WPC Integration
page 440 Appendix B SmartPAC Preventive Maintenance
(PM) Monitor
SmartPAC 2 and Original SmartPAC
SmartPAC 2 operates very much like the original SmartPAC, which you may already have in
your plant. All the options for SmartPAC work with SmartPAC 2.
If you are familiar with the original SmartPAC, you will find using the SmartPAC 2 very
similar. The figure below shows the differences between their front panels. Some of the
instructions in this manual are based on the instructions for the original SmartPAC.
In parts of this manual, the display of the original SmartPAC is shown. Your SmartPAC 2
display will look somewhat different, but the menus and the actions you take are very
similar.
The figure below shows the differences between the keyboard and display of your
SmartPAC 2 and the original SmartPAC. See Chapter 3 for more information.
1
4
7
23
56
89
0.
CLEAR
Contrast
CURSOR
INTERRUPTED
STROKE
BRAKE
WARNING
ENTER
RESET
F1
F2
F3
F4
F5
F6
Wintriss Press Automation Control
SmartPAC
PROG
RUN
ENABLE SENSORS
COUNTERS
DIE PROTECTION
CAM SWITCH
TOOL INFORMATION
RAM POSITION
RAM TONNAGE
ERROR LOG
LOAD NEW TOOL
USE THE CURSOR KEYS
TO MAKE SELECTIONS.
PRESS ENTER TO
ACCESS SELECTION
TOOL NUMBER 6160 PART CNTR 0
CHAIR BRACKET
ENABLE SENSORS
ENTER
RESET
PROG RUN
OFF
INCH
SINGLE
STROKE
CONT
POWER
BRAKE
WARNING
HELP
123
456
987
.0
CLEAR
SmartPAC 2
F1
F2
F3
F4
F5
F6
F7
F8
CA MBIE
AL ESPANOL
USE THE CURSOR KEYS ENABLE SENSORS
TO MAKE SELECTIONS. COUNTERS
PRESS ENTER TO CAM SWITCH
ACCESS SELECTION. BRAKE MONITOR
TONNAGE/WAVEFORM
PROCESS MONITOR
FEED CONTROL
PM MONITOR
TOOL INFORMATION
SHUTHGT/CNTRBAL
ERROR LOG
LOAD NEW TOOL
DIALOG MENU
TOGGLE HOT KEYS 1
330
PRESS # 14
TOOL NUMBER 6160 PART CNTR 0
FLANGE TWO HAND S.S.
PRESS ANGLE 330
Crank angle/SPM display
8 Function keys 6 Function keys
Help key
SmartPAC 2
only
Contrast keys
original SmartPAC
only
SmartPAC 2 with WPC Integration
Original SmartPAC
with WPC Integration
OFF
INCH
SINGLE
STROKE
CONT
OFF
INCH
SING LE
STROKE
CONT

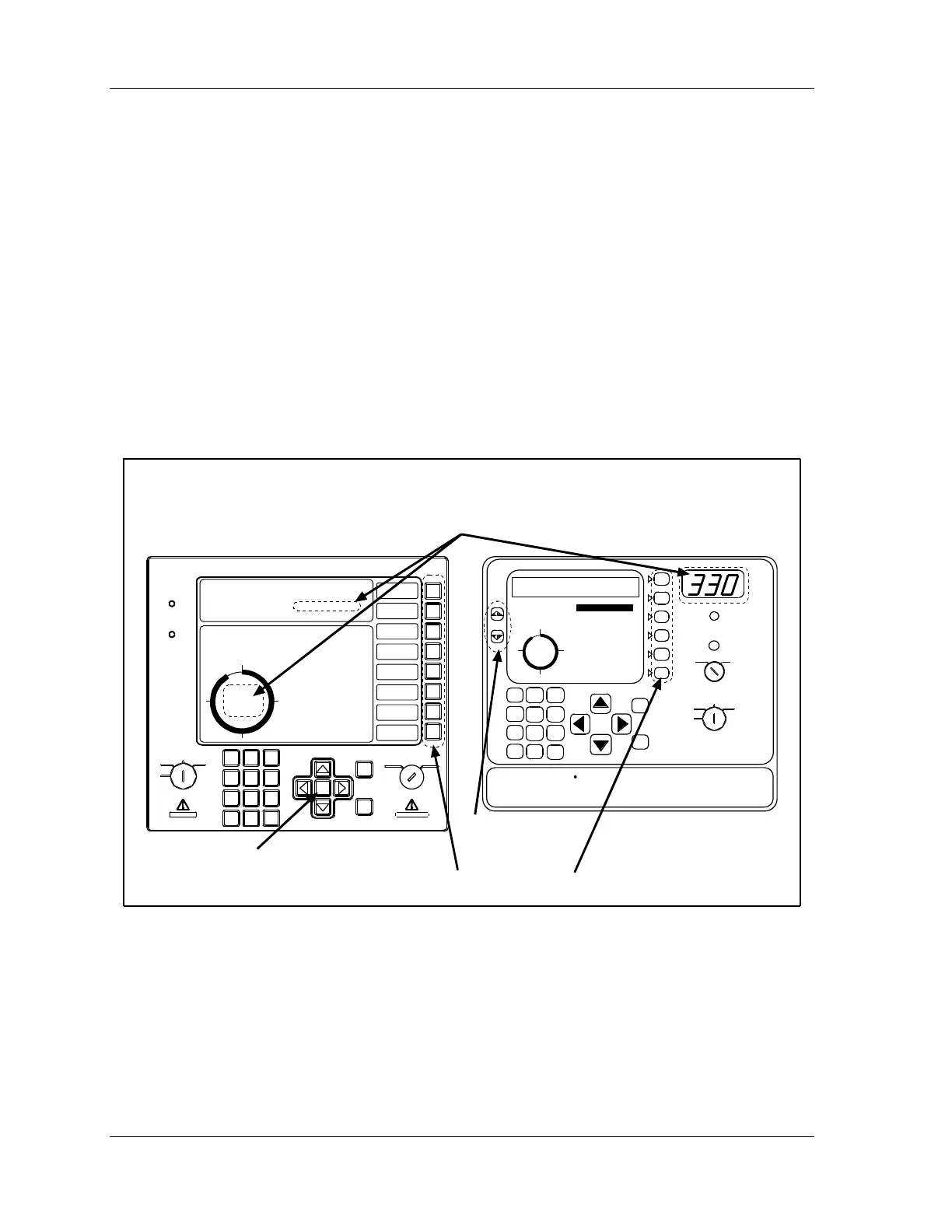

Figure B - 1. SmartPAC 2 and Original SmartPAC
Since SmartPAC 2 has eight function keys and the original SmartPAC has only six, the
function keys will be different in many instances. These are also called “F keys.” Be sure to
read the instructions on the display and read the descriptive labels next to the function keys
before you press a function key.
