1126800 SmartPAC 2 with WPC Integration
Page 4 Chapter 1 Introduction to SmartPAC 2
SmartPAC 2 Front Panel
When you turn power on to SmartPAC 2, the crankshaft angle reading appears on the screen
in Run mode. As soon as the press is running, the display switches to show the press speed.
A description of each component on the front panel plus an illustration of the front of
SmartPAC 2 follows. See Chapter 3 for detailed information on how to use the keyboard and
display.
PRESS #14
TOOL NUMBER 6160 PART CNTR 449
FLANGE B TWO HAND S.S.
PRESS ANGLE 270
CAMBIE
AL ESPANOL
USE THE CURSOR KEYS ENABLE SENSORS
TO MAKE SELECTIONS. COUNTERS
PRESS ENTER TO CAM SWITCH
ACCESS SELECTION. BRAKE MONITOR
TONNAGE/WAVEFORM
PROCESS MONITOR
PRESS CONTROL
FEED CONTROL
PM MONITOR
TOOL INFORMATION
SHUTHGT/CNTRBAL
ERROR LOG
LOAD NEW TOOL
DIALOG MENU
TOGGLE HOT KEYS 1
270
ENTER
RESET
PROG RUN
OFF
INCH
SINGLE
STROKE
CONT
POWER
BRAKE
WARNING
HELP
123
456
987
.0
CLEAR
SmartPAC 2
Wintriss Press Automation Control
F1
F2
F3
F4
F5
F6
F7
F8

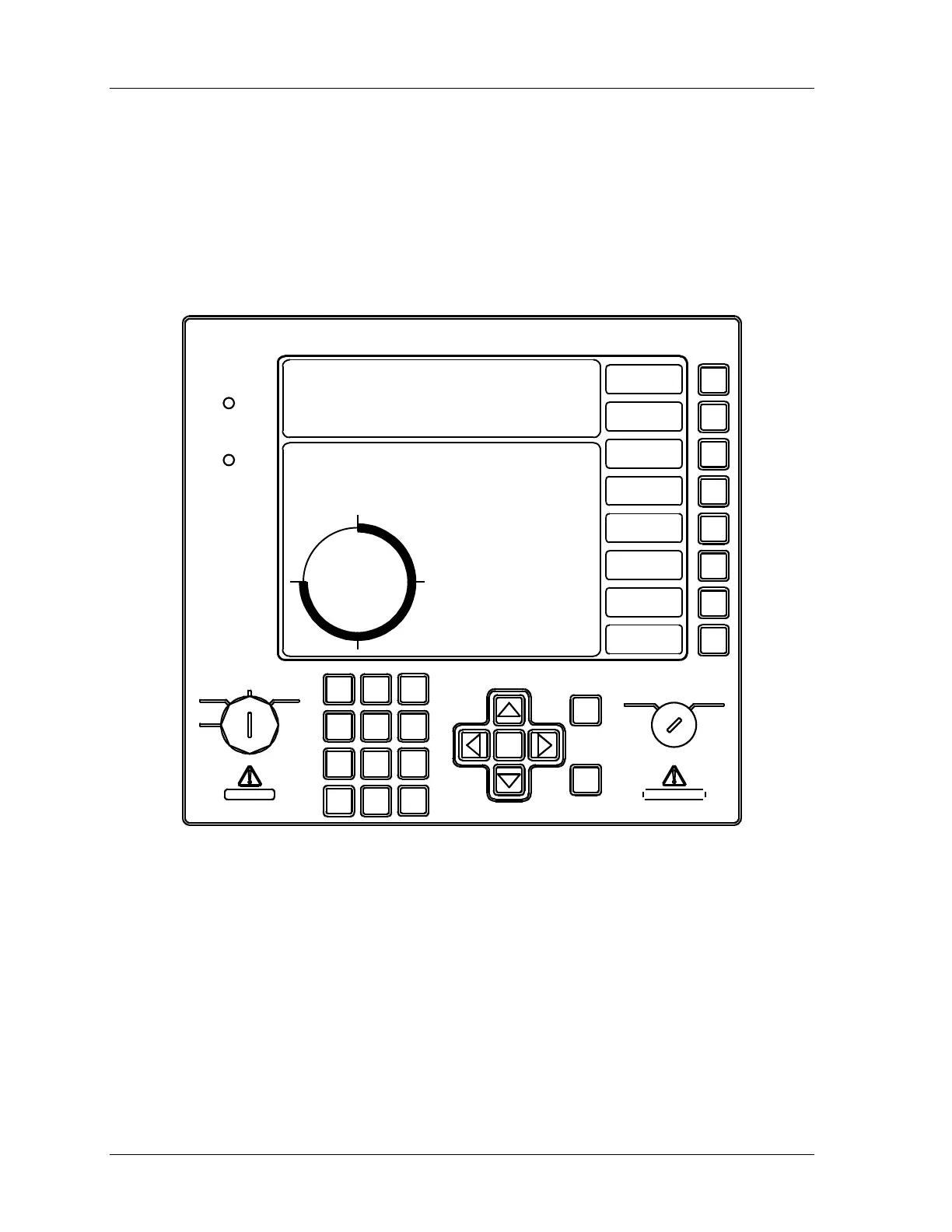

Figure 1 - 1 SmartPAC 2 Front Panel
Display A large, bright color liquid crystal display used along with the
keyboard to make and adjust settings, to load tool numbers, and
to view diagnostic messages.
Display measures 10.4” (264 mm), diagonal measurement.
Program/Run key switch Allows you to lock the Program mode so settings cannot be
changed. The key must be set at "Run" to operate the press.
Minor adjustments, including loading an existing tool number,
can be made in Run mode
