Honeywell SmartPAC 2 User Manual

SmartPAC 2 with WPC Integration 1126800
Installing SmartPAC 2 and WPC Chapter 2 page 49
6.06
(154.0)
MUTE
RESET
MUTE
EMERGENCY
STOP
PALM
TIME
PRIOR
ACT
TOP
STOP
16.75
(425.5)
28.75
(730.3)
5.50
(139.7)
4.69
(119.1)

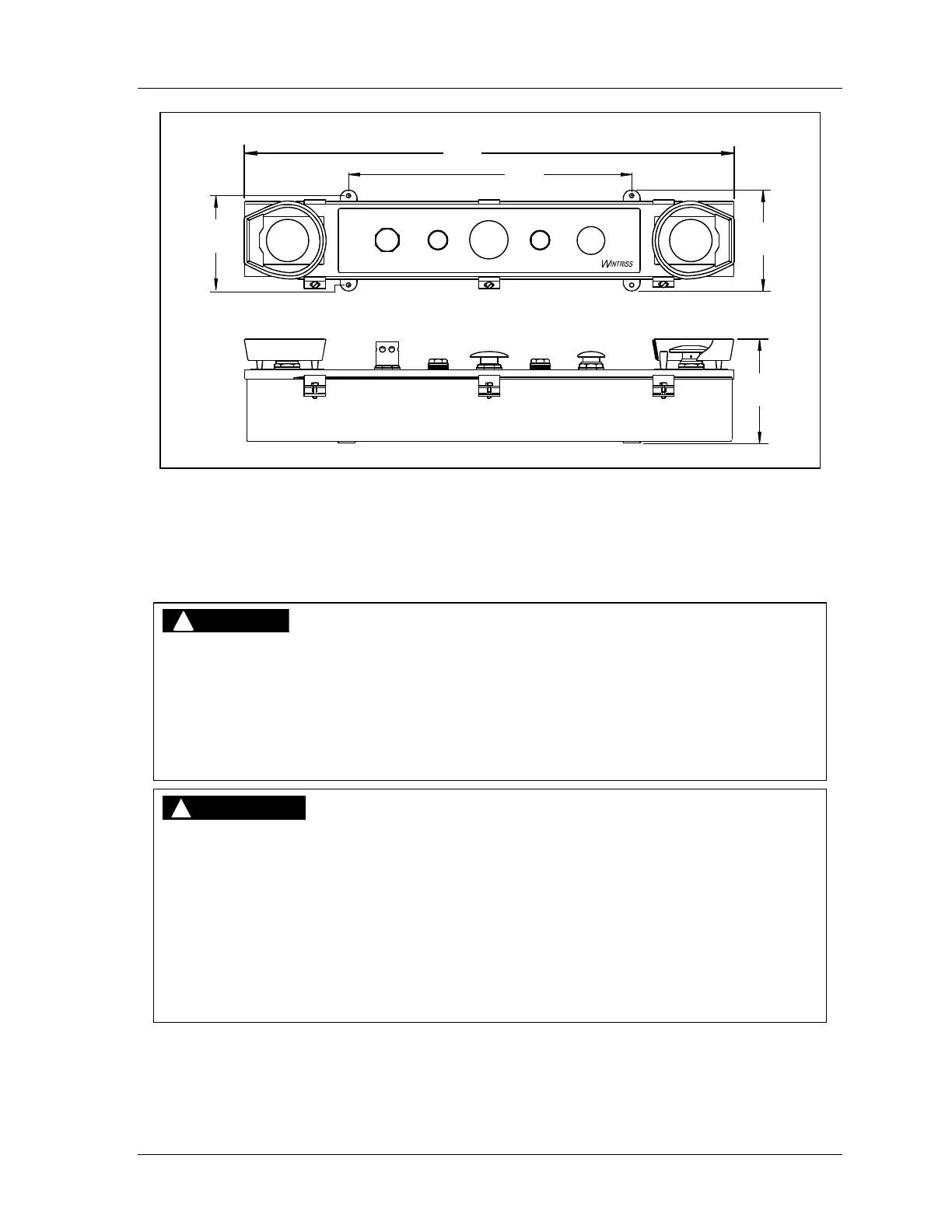

Figure 2 - 10. Operator Station, Top Buttons
Using a Light Curtain on Your Press
DANGER
!
OPERATOR CAN STAND BETWEEN LIGHT CURTAIN AND PINCH POINT
• Mount the light curtains and operator station according to the instructions in this manual.
• Mount the operator station outside the area protected by the light curtains.
• DO NOT mount the operator station between the light curtain and the pinch point.
Failure to comply with these instructions will result in death or serious injury.
DANGER!
INCORRECT LIGHT CURTAIN INSTALLATION
• Mount the light curtains at the correct safety distance as instructed in this manual. See
“Calculating the Safety Distance,” page 348, under "Brake Monitor" in Chapter 6.
• The light curtain will only provide full protection for operators when mounted at the correct
safety distance.
• Install and wire your light curtains correctly, following the instructions in your Shadow
manual.
Failure to comply with these instructions will result in death or serious injury.
If you are using light curtains on your press, they must be mounted at least the correct safety
distance away from the hazardous area. This ensures that the light curtain will send a stop
command to the press in time for the press to stop before anyone can reach the pinch point. If
