SmartPAC 2 with WPC Integration 1126800
Introduction to SmartPAC 2 Chapter 1 page 15
Green Quick Check
A sensor input set to "green quick check" is almost the same as the "green" setting. The
sensor must turn on at least momentarily within the ready signal. However, a green quick
check sensor cannot stay on or turn on outside the ready signal. The sensor must turn on,
then turn off within the ready signal. Otherwise, SmartPAC 2 sends the stop signal to the
press.
KEY
= Ready
Signal
Green
Quick Check
Sensor
not allowed
(press stops)
Sensor never goes
ON.
Stop signal sent at
end of ready signal.
TDC
BDC
OK
Sensor goes ON
only inside ready
signal.
TDC
BDC
Sensor is ON outside ready signal.
Stop signal sent when sensor is ON outside ready
signal.
not allowed
(press stops)
TDC
BDC
TDC
BDC
TDC
BDC
= Sensor
ON

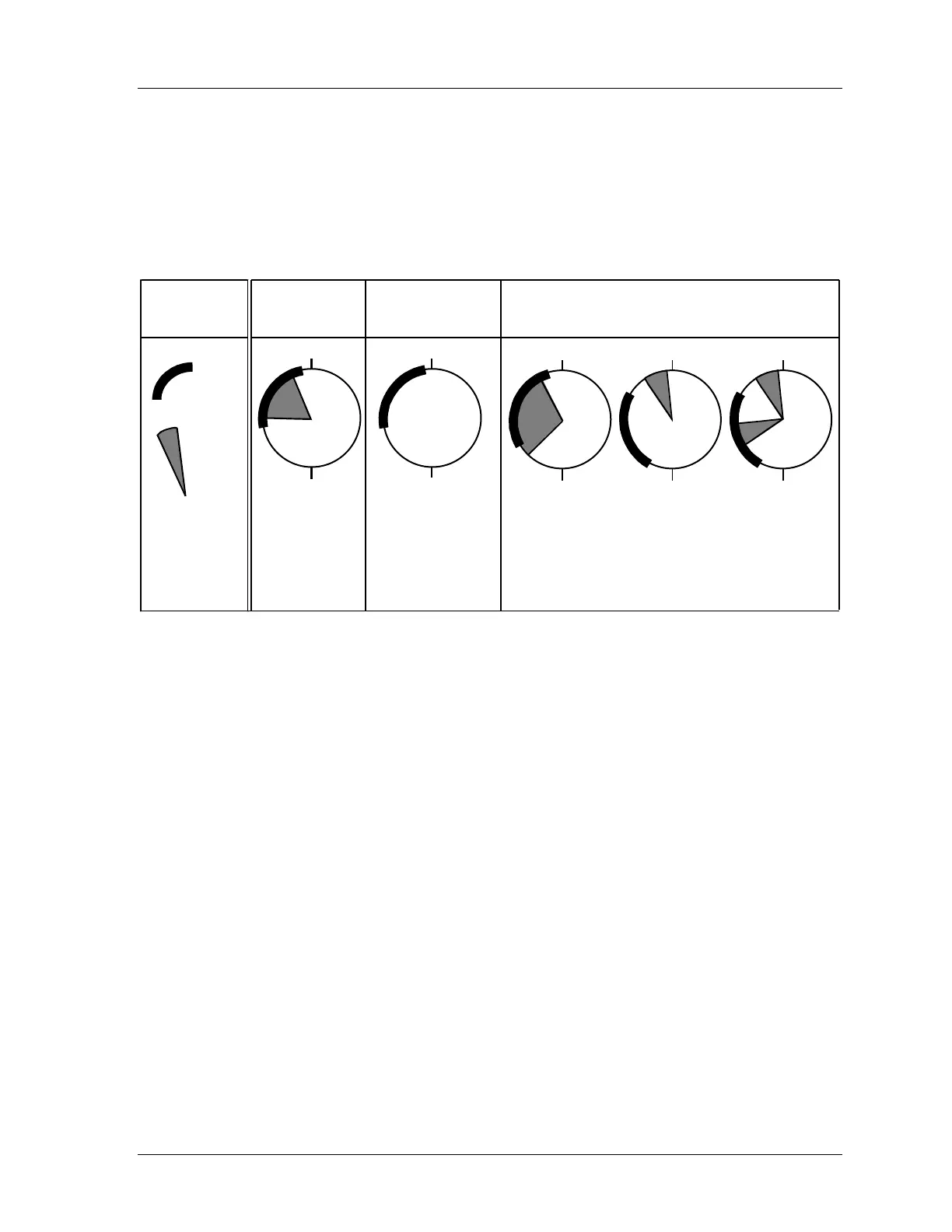

Figure 1 - 4. How SmartPAC 2 Interprets Signals From a Sensor Set to
"Green Quick Check"
