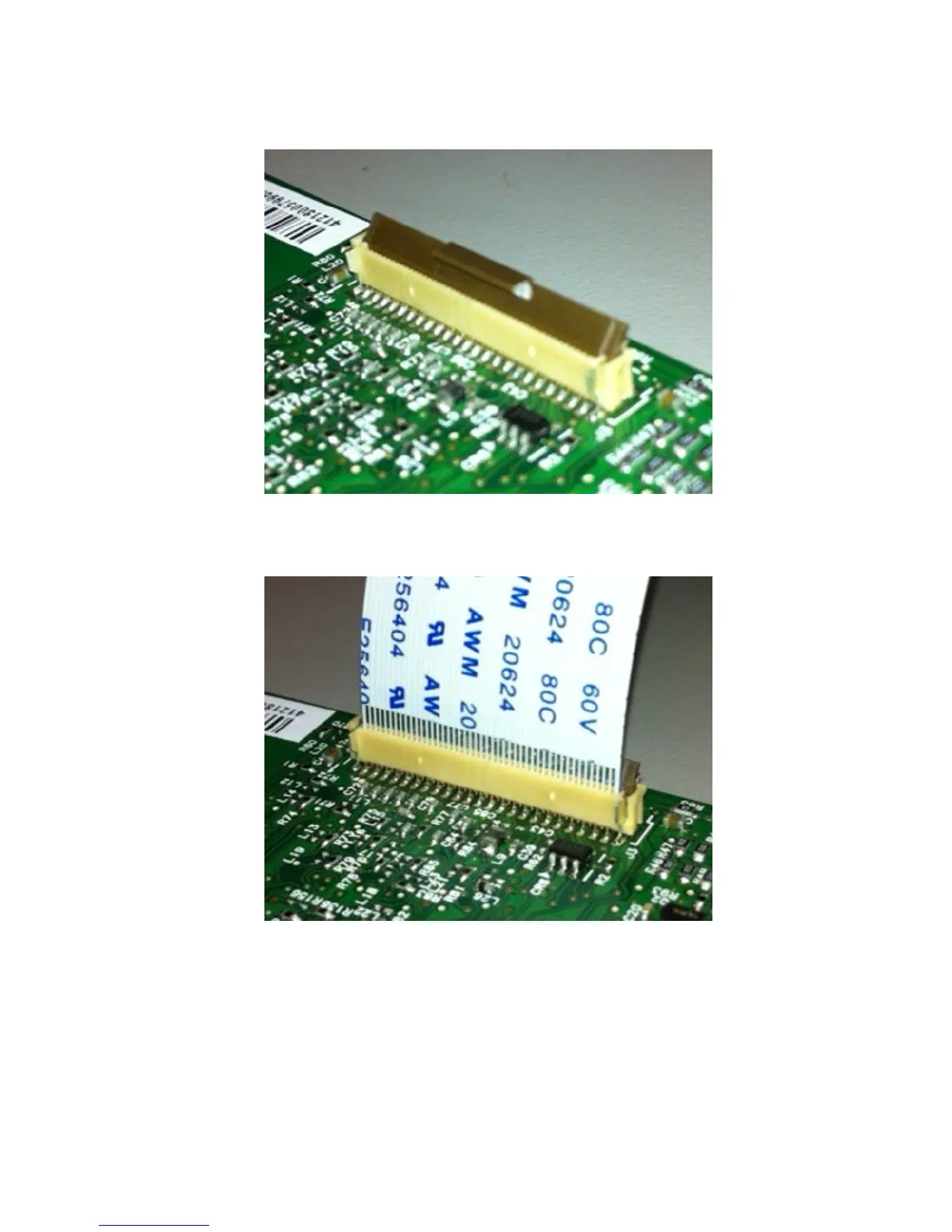

Inserting the cable
1 Make sure that the locking actuator is in the open position.
2 Insert the cable on top of the actuator with the contacts facing away from the locking actuator.
Note: Make sure that the cable is installed squarely into the connector to avoid intermittent failures.
3 Rotate the locking actuator to the locked position.
Notes:
• Do not move the cable while locking the actuator.
• If the cable moves, open the actuator, reposition the cable, and then close the actuator.
