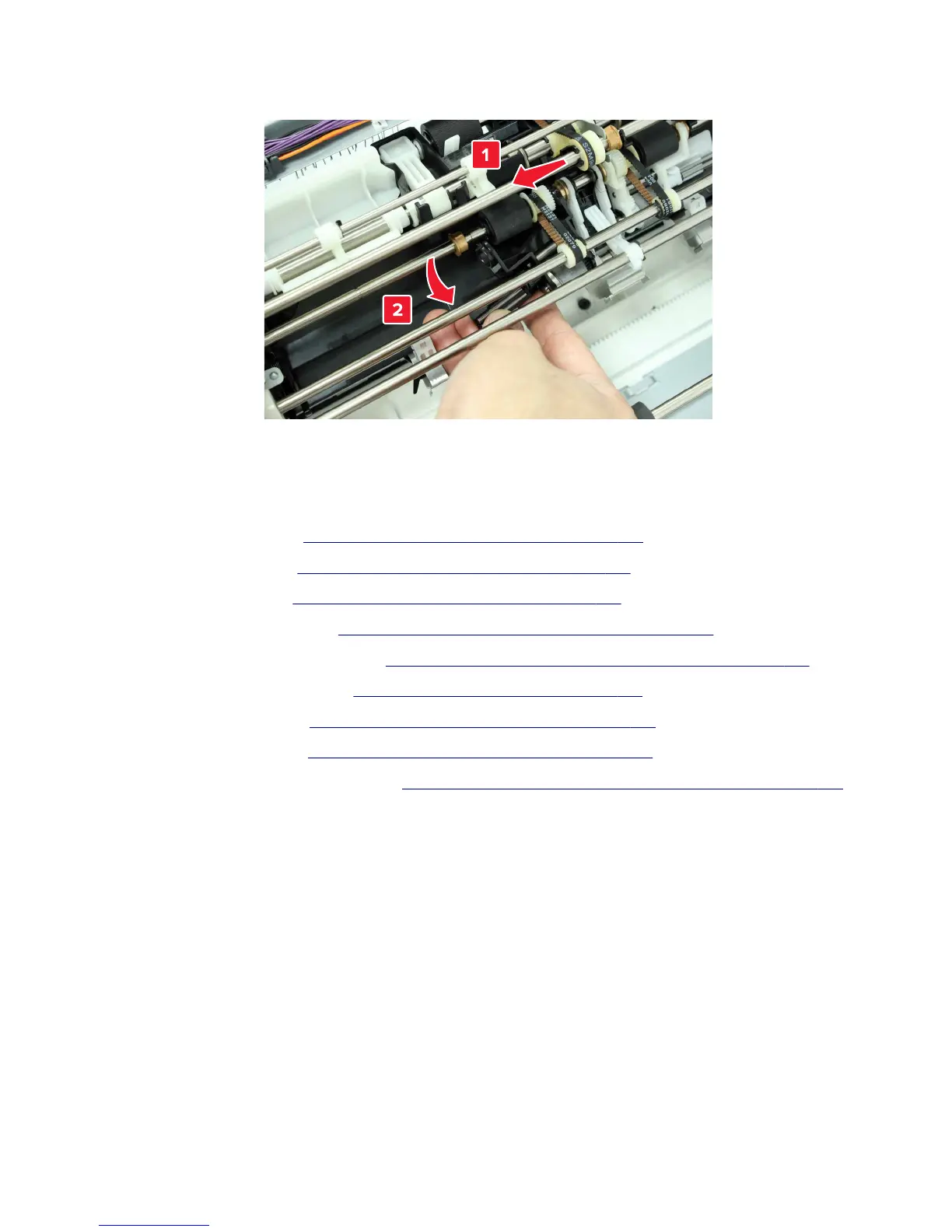

8 Slide, and then swing out to remove the roller.
9 Remove the other roller.
Staple finisher compiler feed roller shaft assembly removal
1 Remove the front cover. See “Staple finisher front cover removal” on page 229.
2 Remove the rear cover. See “Staple finisher rear cover removal” on page 230.
3 Remove the top cover. See “Staple finisher top cover removal” on page 231.
4 Remove the controller board. See “Staple finisher controller board removal” on page 244.
5 Remove the controller board holder. See “Staple finisher controller board holder removal” on page 245.
6 Remove the exit motor bracket. See “Exit motor bracket removal” on page 277.
7 Remove the upper guide. See “Staple finisher upper guide removal” on page 287.
8 Remove the lower guide. See “Staple finisher lower guide removal” on page 291.
9 Remove the compiler feed roller guide. See “Staple finisher compiler feed roller guide removal” on page 293.
4021, 7421
Repair information
296
