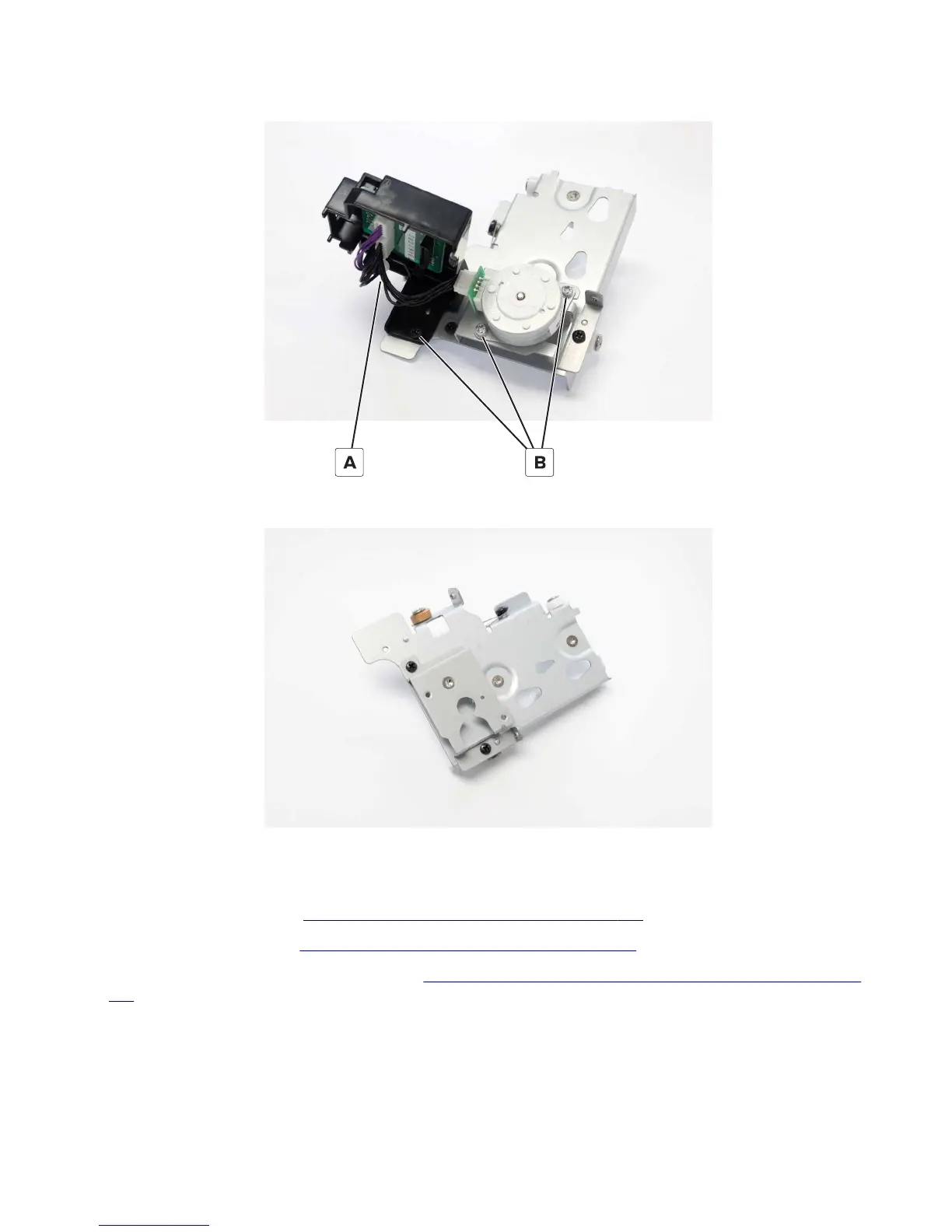

5 Remove the three screws (B), and then remove the card holder and motor.
6 The carriage remains.
Staple finisher staple unit carriage gears removal
1 Remove the front cover. See “Staple finisher front cover removal” on page 229.
2 Remove the staple unit. See “Staple finisher staple unit removal” on page 260.
3 Remove the staple unit carriage assembly. See “Staple finisher staple unit carriage assembly removal” on page
261.
4021, 7421
Repair information
264
