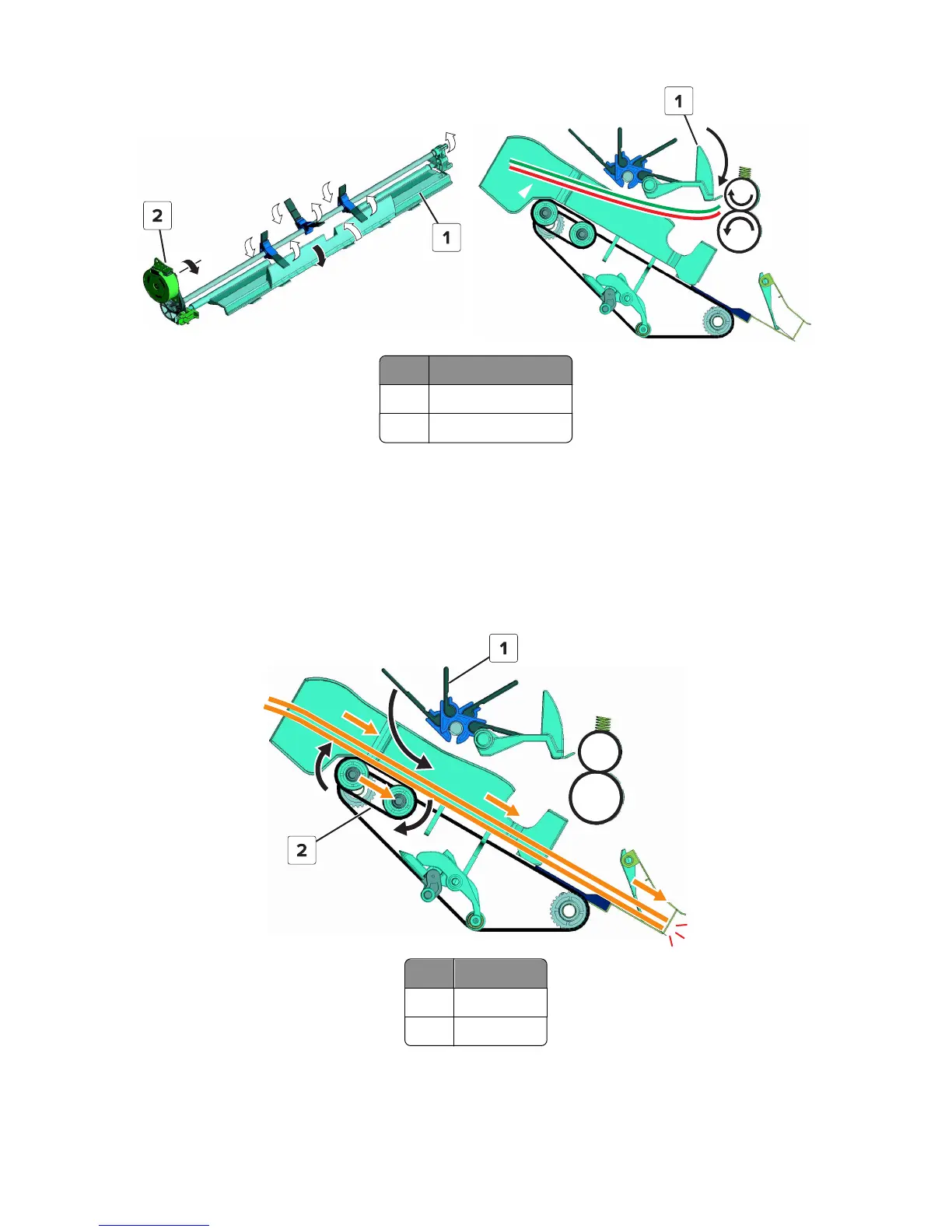

# Part
1 Compiler guide
2 Motor (SHPF paddle)
SHPF compiler section paper alignment
The aligner paddles and aligner roller rotate to push the paper to the aligners. The motor (SHPF paddle) and motor
(SHPF compiler pre-eject) drive the aligner paddles and aligner roller respectively.
Both tamper plates move to align the paper stack in the middle. If in offset mode, then the stack is aligned either to
the front side or rear side. Depending on the paper width and on which side to align the stack, one tamper moves and
then stops at a preset position. The other tamper pushes the stack to the stationary tamper.
# Part
1 Paddle
2 Aligner roller
4021, 7421
Appendix C: Theory of operation
658
