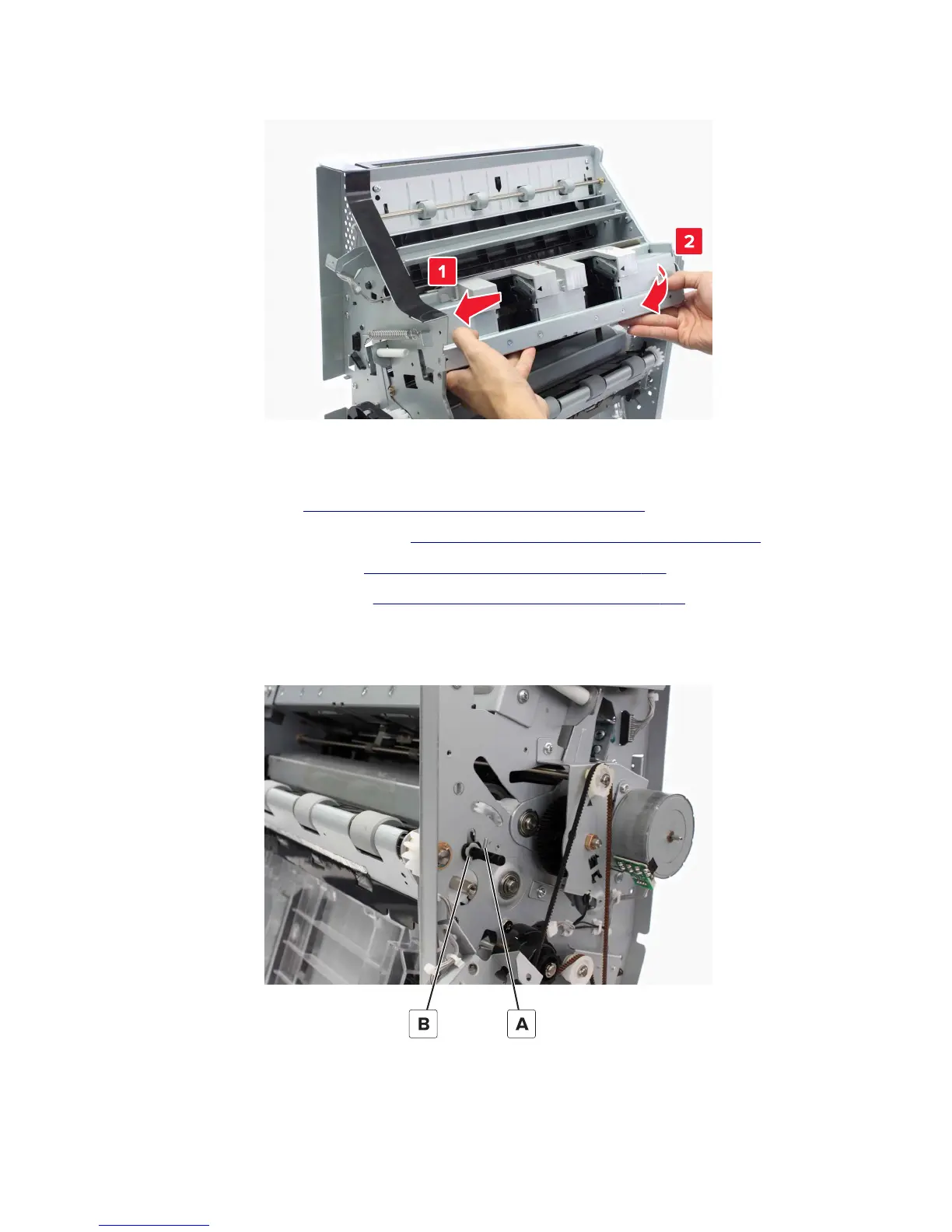

12 Remove the staple unit.
Trifold diverter removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Remove the trifold guide motor bracket. See “Trifold guide motor bracket removal” on page 489.
3 Remove the trifold gate actuator. See “Trifold gate actuator removal” on page 490.
4 Remove the trifold knife assembly. See “Trifold knife assembly removal” on page 504.
5 Remove the pin (A).
6 Remove the clip (B), and then remove the bushing.
7 Remove the three screws (C).
4021, 7421
Repair information
514
