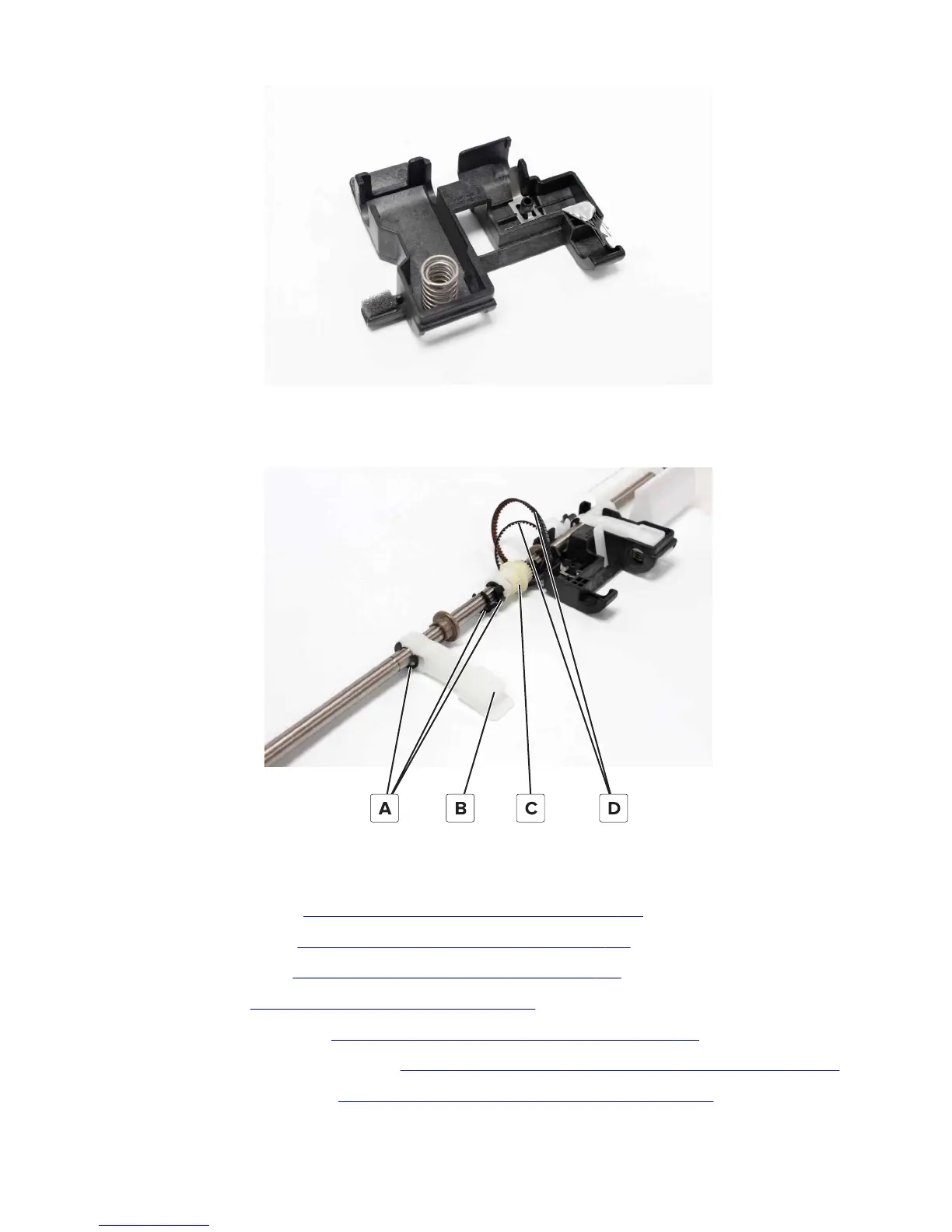

14 Remove the three clips (A), and then remove the lever (B).
15 Remove the bushings, and then remove the gear (C) and two belts (D).
Staple finisher tamper and aligner assembly removal
1 Remove the front cover. See “Staple finisher front cover removal” on page 229.
2 Remove the rear cover. See “Staple finisher rear cover removal” on page 230.
3 Remove the top cover. See “Staple finisher top cover removal” on page 231.
4 Remove the bin. See “Staple finisher bin removal” on page 232.
5 Remove the left inner cover. See “Staple finisher left inner cover removal” on page 233.
6 Remove the bin stack height assembly. See “Staple finisher bin stack height assembly removal” on page 233.
7 Remove the controller board. See “Staple finisher controller board removal” on page 244.
4021, 7421
Repair information
311
