5 Swing out the cover.

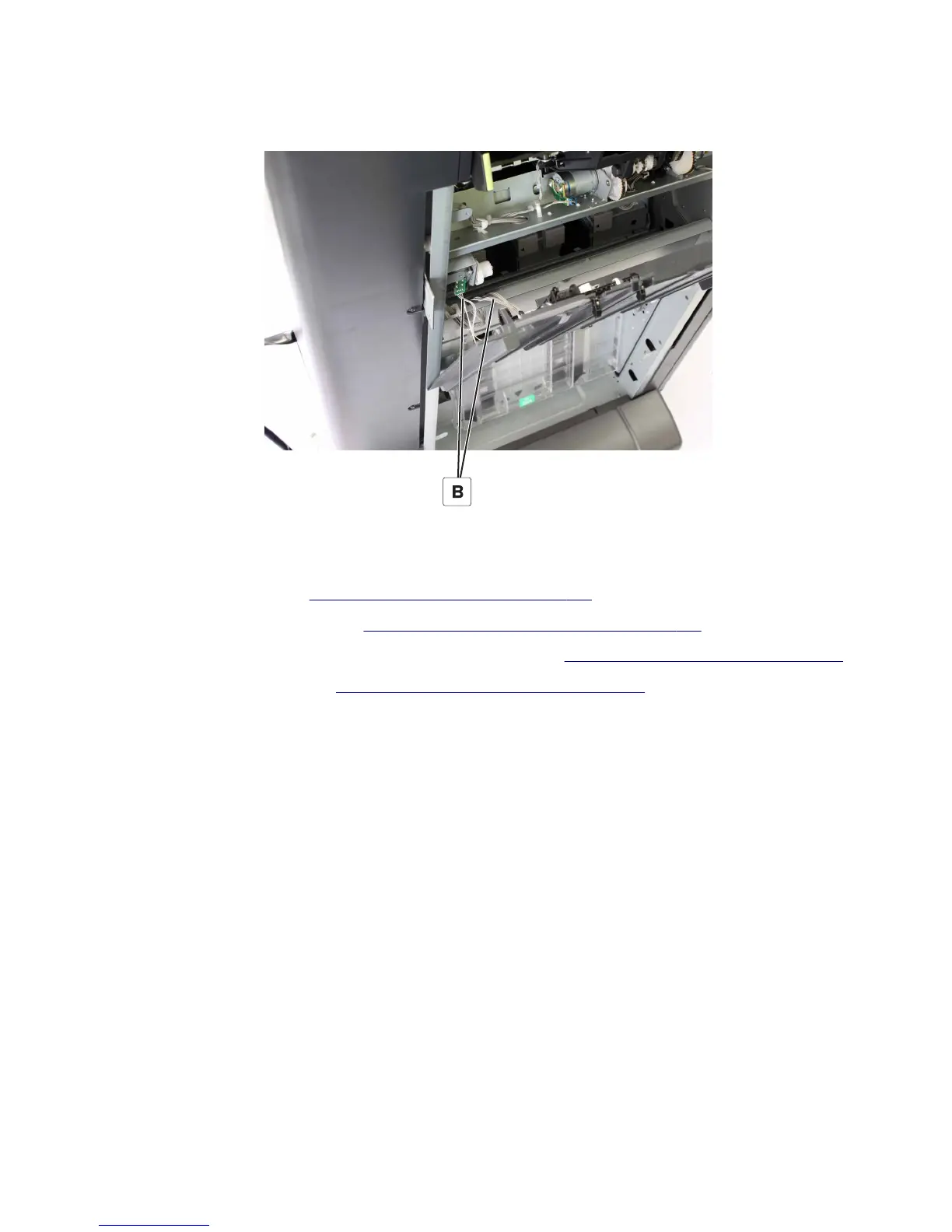

6 Disconnect the two cables (B), and then remove the cover.
SHPF upper left cover sensors removal
1 Remove the elevator bin. See “SHPF elevator bin removal” on page 331.
2 Remove the elevator bin bracket. See “SHPF elevator bin bracket removal” on page 332.
3 Remove the HBPF lower left cover or the SHPF lower left cover. See “Lower left cover removals” on page 344.
4 Remove the upper left cover. See “SHPF upper left cover removal” on page 348.
4021, 7421
Repair information
349
