10 Remove the staple unit assembly. See “SHPF staple unit assembly removal” on page 367.
11 Remove the compiler assembly. See “SHPF compiler assembly removal” on page 403.

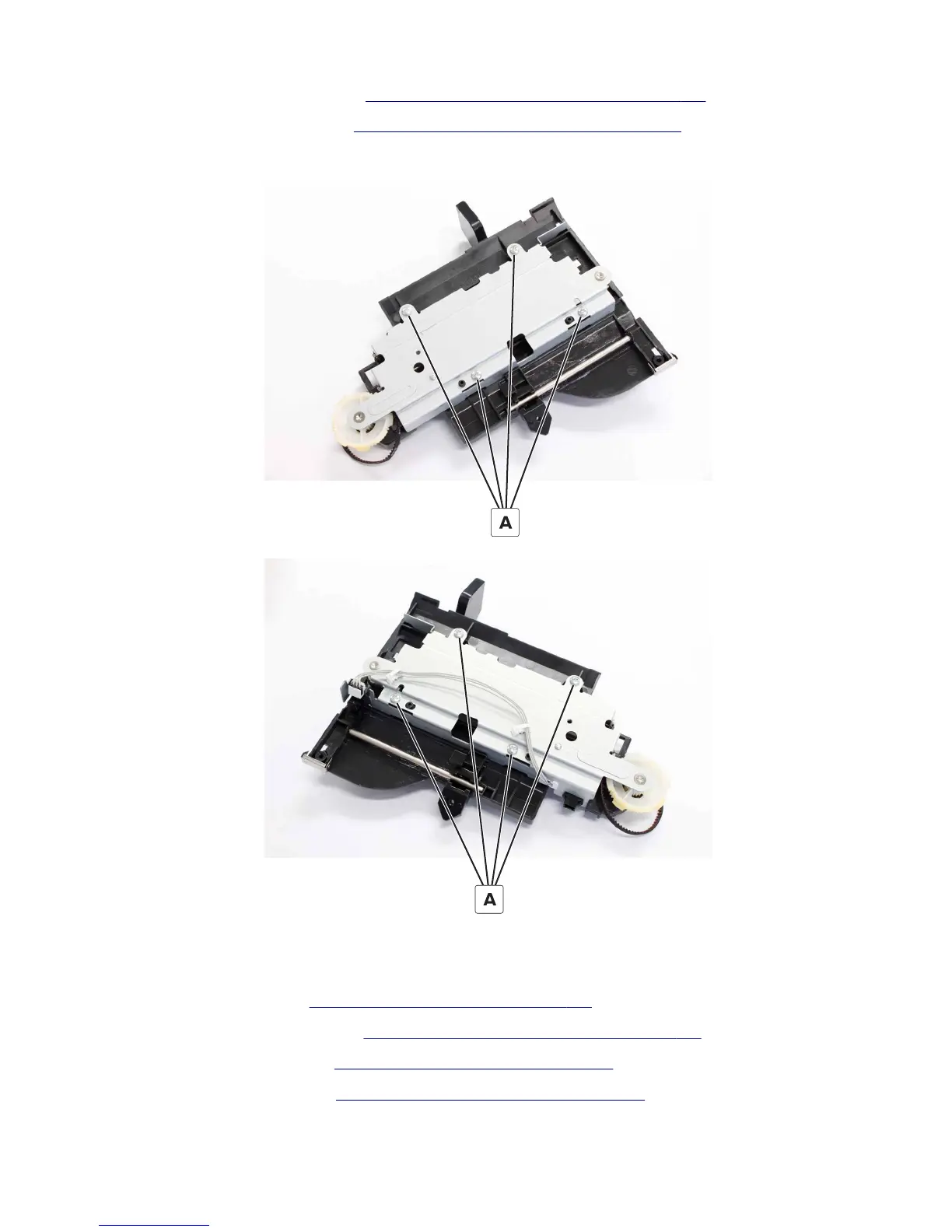

12 Remove the eight screws (A), and then remove the trays.
SHPF tamper belts and gears removal
1 Remove the elevator bin. See “SHPF elevator bin removal” on page 331.
2 Remove the elevator bin bracket. See “SHPF elevator bin bracket removal” on page 332.
3 Remove the lower left cover. See “Lower left cover removals” on page 344.
4 Remove the upper left cover. See “SHPF upper left cover removal” on page 348.
4021, 7421
Repair information
412
