Lexmark MS911 - HPT Feed Sensor Actuator Removal; Sensor (HPT Door) Removal

HPT feed sensor actuator removal

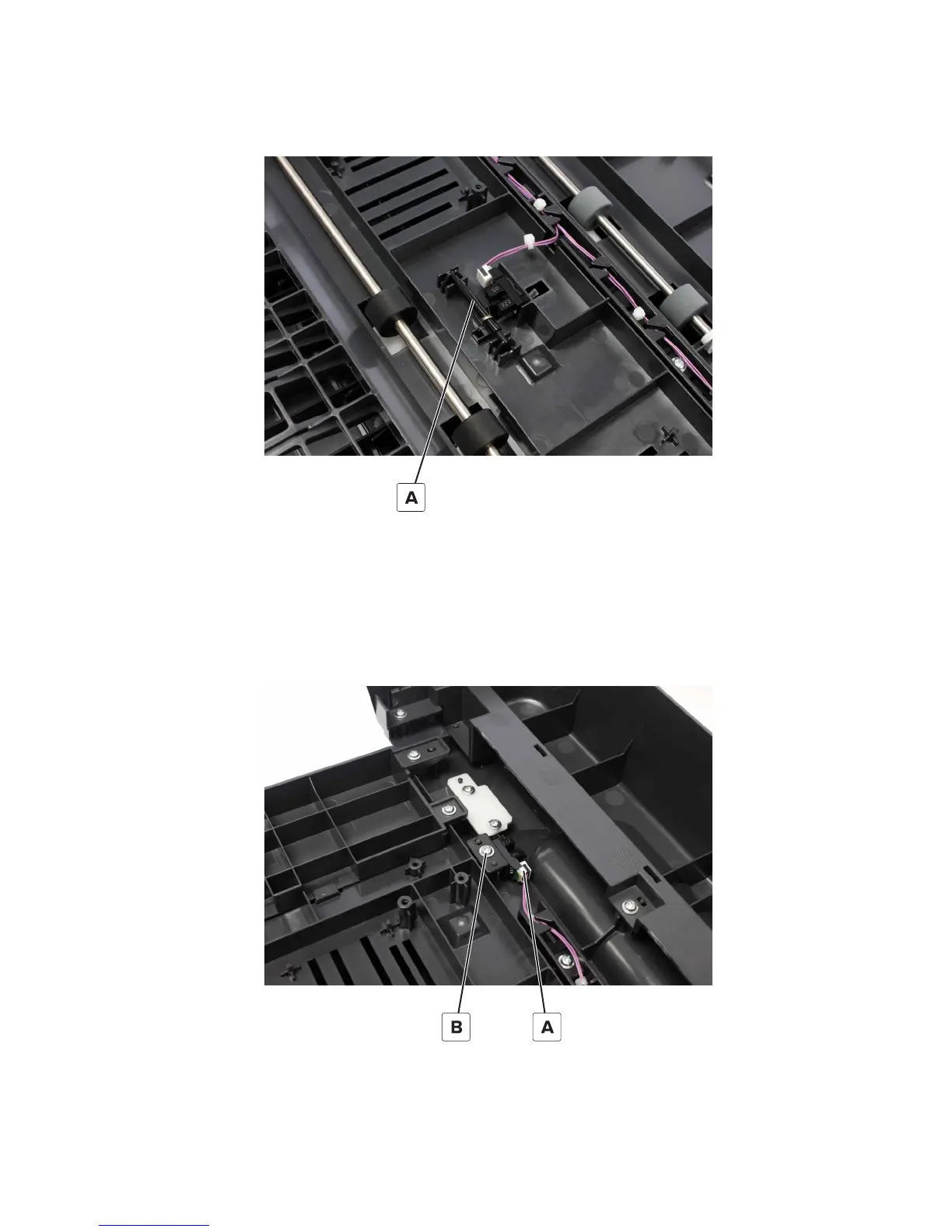

1 Pry the actuator (A).
2 Remove the actuator.
Sensor (HPT door) removal
1 Disconnect the cable (A).
2 Remove the screw (B), and then remove the sensor.
4021, 7421
Repair information
323
