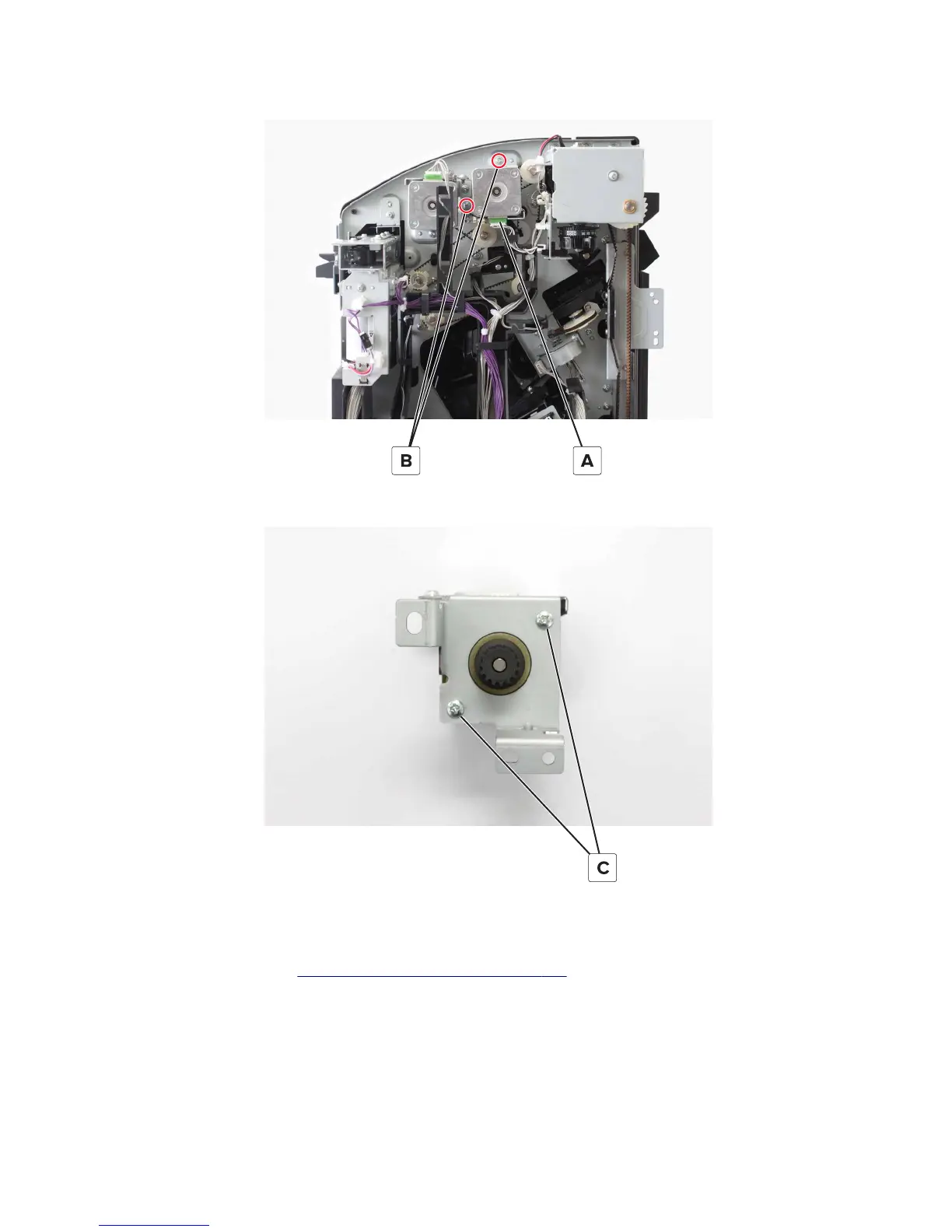

3 Remove the two screws (B), and then remove the motor bracket.
4 Remove the two screws (C), and then remove the motor.
Motor (SHPF rear tamper) removal
1 Remove the rear cover. See “SHPF rear cover removal” on page 339.
2 Disconnect the cable (A).
4021, 7421
Repair information
357
