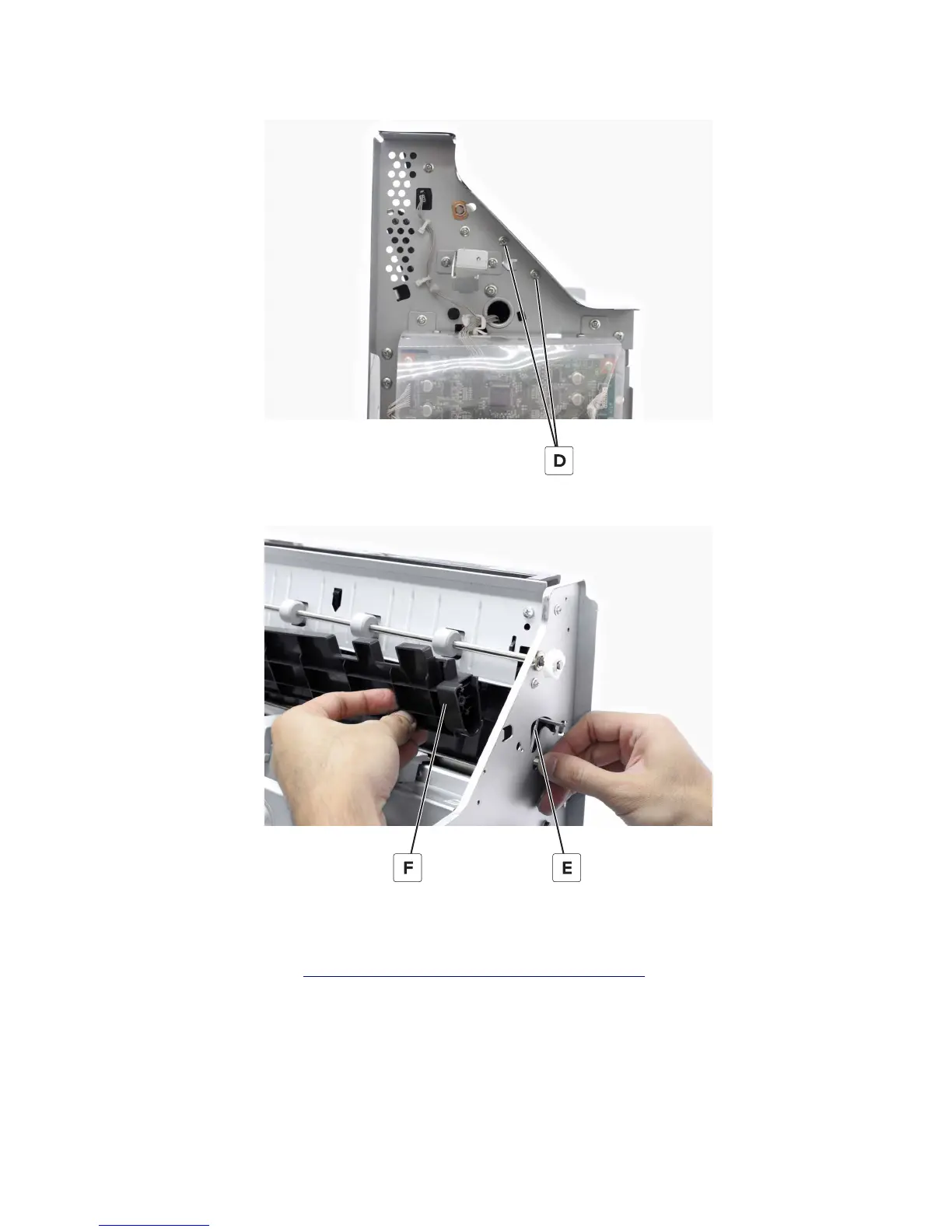

6 Remove the two screws (D), and then remove the brace.
7 Separate the shaft and plate (E), and then remove the guide (F).
Motor (bifold guide) removal
1 Remove the front cover. See “Booklet maker front cover removal” on page 456.
2 Disconnect the cable (A).
4021, 7421
Repair information
486
