Lexmark MS911 - SHPF Compiler Feed Roller Release Motor Bracket Removal; Sensor (SHPF Compiler Feed Roller Release) Removal

SHPF compiler feed roller release motor bracket removal
1 Remove the front door. See “SHPF front door removal” on page 336.
2 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.

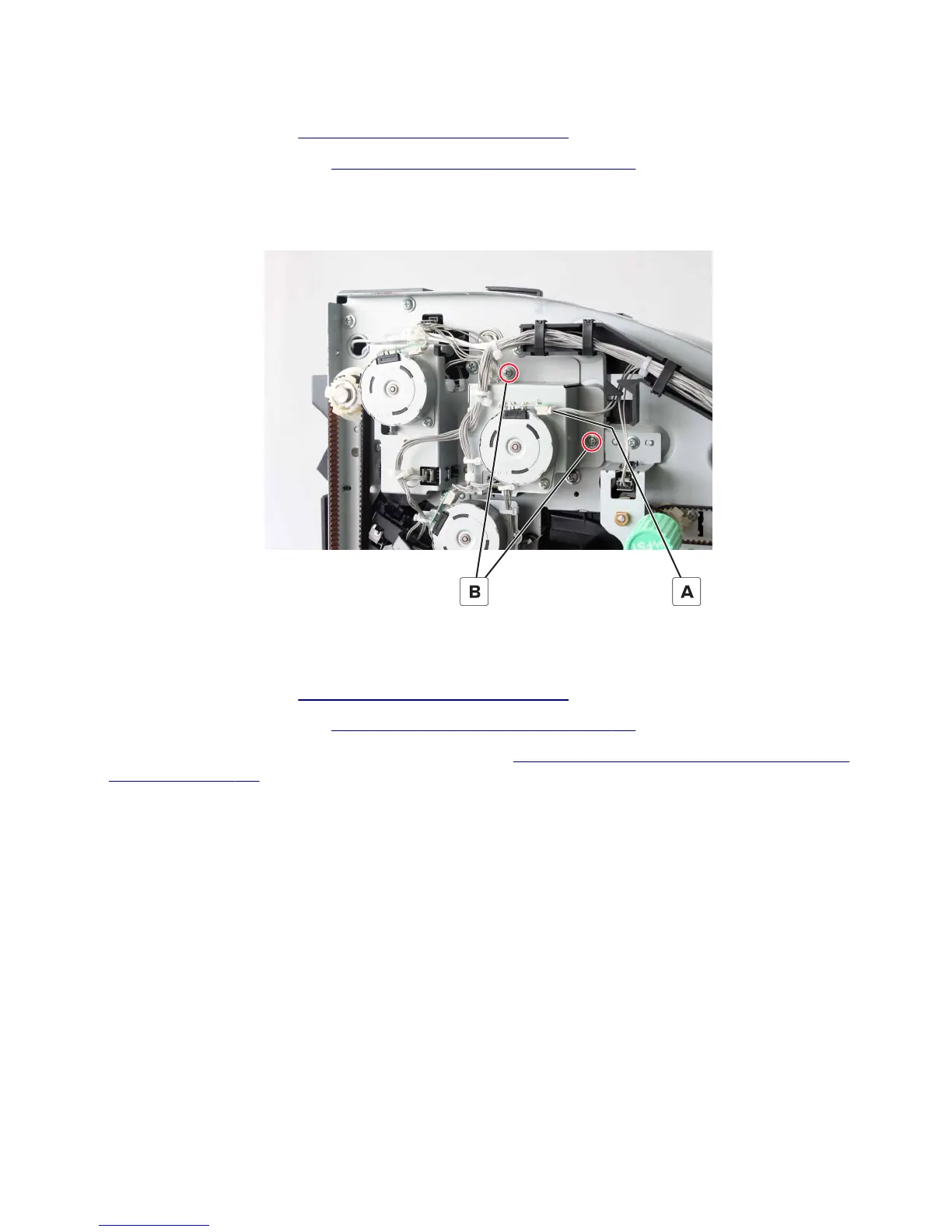

3 Disconnect the two cables (A).
4 Remove the two screws (B), and then remove the motor bracket.
Sensor (SHPF compiler feed roller release) removal
1 Remove the front door. See “SHPF front door removal” on page 336.
2 Remove the top inner cover. See “SHPF top inner cover removal” on page 336.
3 Remove the compiler feed roller release motor bracket. See “SHPF compiler feed roller release motor bracket
removal” on page 389.
